2003-2012 Ram 2500/3500 2.5 Inch Stage 3 Suspension System is our mid-level performance system for the active off road or overlanding enthusiast. This system not only levels out the stance, it increases ride quality and performance both on and off road.

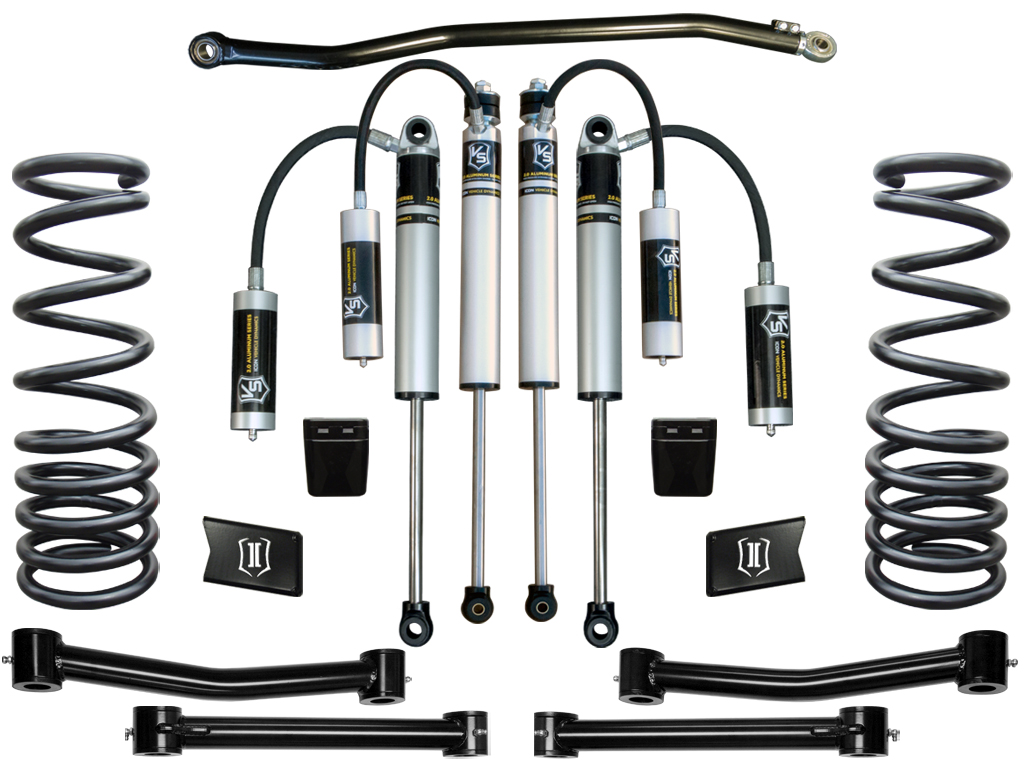

The Stage 3 system is comprised of dual rate coil springs, polyurethane bumpstops, sway bar drop brackets, 2.0 Aluminum Series remote reservoir shocks, bearing style adjustable track bar, and front steel upper and lower links. Remote reservoir shocks will extend performance of the kit by increasing the duration of consistent damping regardless of situation.
The adjustable track bar with FK bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. ICON steel upper and lower links included increase performance, strength, and range of alignment.
These link arms decrease the bind found in the factory link bushings. ICON has spent endless hours testing and tuning our suspension components and shocks together, so you can rest assured you have the best suspension solution on the market.
Details- Bushings Included: Yes
- Coil Spring End 1 Type: Open
- Coil Spring End 2 Type: Open
- Coils Quantity Front: 2.0
- Dual Rate Coil Springs: Yes
- Grade Type: Performance
- Maximum Lift: 2.5 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
- Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 5.25 Inch Bs / 13mm Offset, Icon Alloys - 20x9 Inch W/ 5.50 Inch Bs / 12mm Offset, Icon Alloys - 18x9 Inch W/ 5.50 Inch Bs / 12mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Add On Part: 191014 - .25 Inch Collar Spanner Pin Wrench
