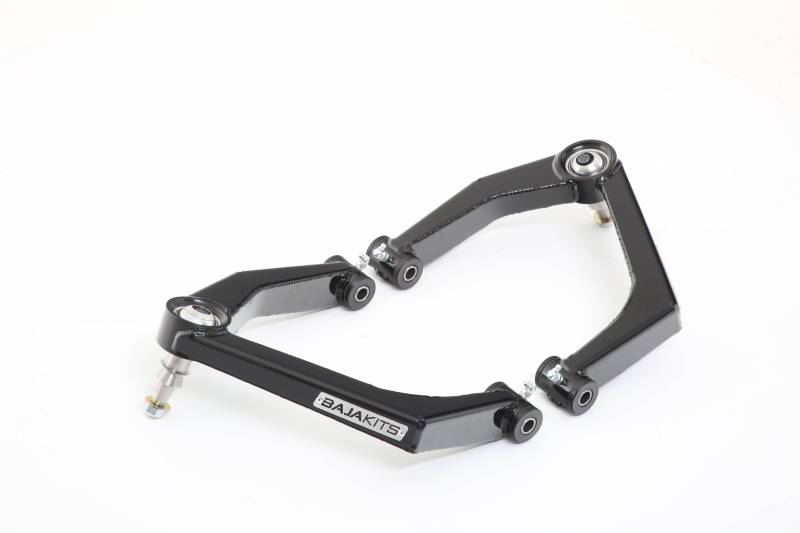

Our computer designed upper a-arm uses a fabricated, boxed arm design for ultimate strength. It allows significantly more wheel travel over stock when paired with an extended length, bolt in, aftermarket shock and we've built more caster into all of our Upper arms to give your truck the on road stabilty needed anytime a truck is lifted from its factory ride height.
We use Trophy Truck grade uniballs to replace the weak, stock ball joints, giving you maximum articulation and performance in the dirt with your 2WD or 4WD Silverado.
These will also work great with your existing lift kit that most likely has maxed out the stock ball joint angle. (Rear kits available too).
The Baja Kits Advantage:
- CAD designed boxed UCA
- Our custom Hi-Density Custom Bushings with grease fittings offer industry leading durabilty and a quiet, no squeak ride
- 1 Inch Hi angle Trophy Truck grade uniball's replace the weak stock ball joints that fail under high angles and loads seen from normal offroad use
- Our CNC machined corrosion resistant misaligns have a tapered snout to adapt your stock upright/spindle with ease
- We've increased the caster angle that you lose when lifting a truck with stock arms to regain on road stability, handling and alignment
Technical Specs:
- Track Width - Stock width
- Lift - 0-3 Inch
Product Requirements:
- Shocks - Aftermarket Replacement 2.5 & 3.0 Shocks
- Tire Size - 33 Inch are recommended for most with slight trimming.
- 35 Inch Tires have become popular be but warned, Significant trimming is needed
- Wheel Size - 17 Inch rim with 4.75 Inch max backspacing
Parts Included:
Kits come pre assembled and ready for install
- Boxed Upper Arms
- Baja Kits Badges & Rivets
- Hi-Density Custom Bushings
- Crush Sleeves
- Zerk fittings
- 1 Inch uniballs
- Countersunk Top Misaligns & 12 point bolts
- Heat Treated Tapered Misalign Adapters
Additional Items
- Install Guide
- Baja Kits Sticker pack
Install Information:
- Level 1 Installation, Bolt on
- Install Time: 2 hours (Times will vary depending on knowledge and skill level)
- Images May Differ from the Actual Product
Up to 9 Inch of wheel travel with Baja Kits custom King Shocks; 0-3 Inch of lift - Max Backspacing 4.75 Inch
Stamped Steel, Aluminum, and Forged Steel Control Arms
For the2019-Up Chevy Silverado and GMC Sierra 1500 trucks, GM offered three different upper control arms: stamped steel, aluminum, and forged steel.
Additionally, in 2014-2016 GM truck had two different knuckles-aluminum and steel-each with different ball joint hole sizes.
Stamped steel and aluminum arms have a larger ball joint that fit the same knuckle. Steel knuckles with forged steel control arms had smaller ball joint holes that match the cast steel arms only.
This is the same setup found on 2007-2014 models. Forged steel and forged aluminum arms have retention clips on the ball joint so if the ball joint cup becomes distorted, it does not fail.
New Stamped Steel Arm Design
The New stamped steel arms have a ball joint that is sandwiched between the upper and lower pieces of the arm with a relatively small surface area for ball joint retention with no supporting clips. If these cups distort, the ball joint fails and falls out.
GM 1500 trucks built after April 1, 2016 are stamped steel arms mated to smaller steel knuckles with the larger of the two ball joints. Basically, they are using the larger ball joint from the aluminum arm and putting it in a stamped arm and mating it to a smaller steel knuckle.
