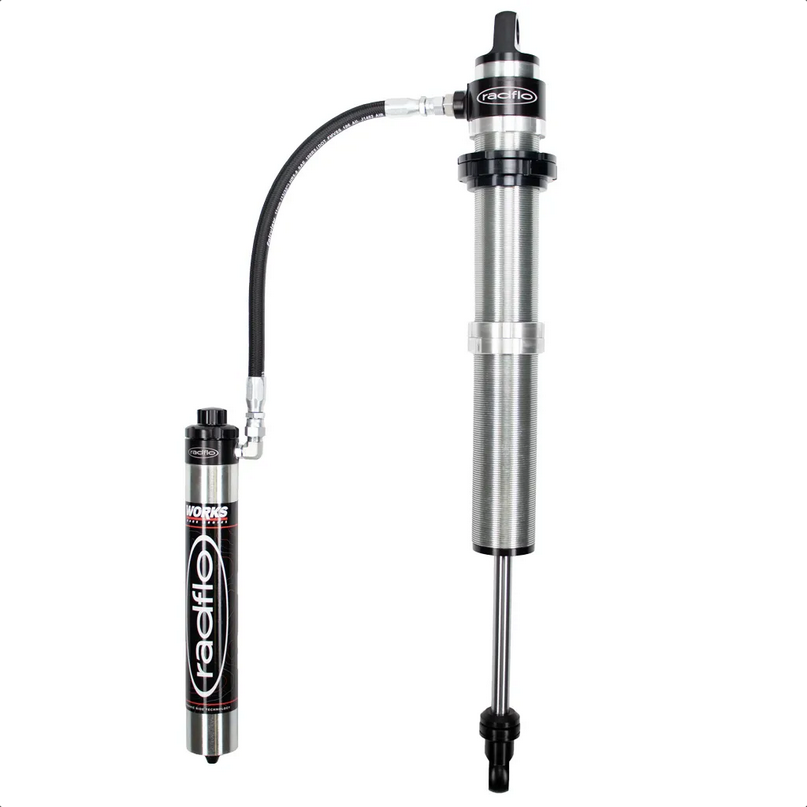

This Shock Absorber is built to support stable handling and a controlled ride, helping your vehicle stay composed on and off road.
Proprietary Rst Dynamic Ride technology Dampers provide both Velocity and position-sensitive damping in a single unit, with a progressive ramp-up for comfort and ride quality while also increasing control for bottom and top-out events. This Alloys the vehicle to flowt over small bumps and chatter while maintaining that bottomless feeling, even when going fast through the big stuff.
External bypass performance in a single smooth-body or coil-over unit provides race truck level control and confidence, no matter your application. Custom Adjustments Custom Spec - Main Piston Valving, Compression and Rebound High/lo'-Speed Compression Adjuster Custom Spec - Internal Bypass (Drt), Compression and Rebound Compression Compression Ride Zone This zone controls the amount of bypass initially introduced on compression and the rate at which the suspension compresses.
This is ideally the middle of the travel, where the piston sits at ride height +/- a certain percentage. While in the Ride Zone, the oil can bypass the main piston through the proprietary Drt valves, generating minimal high-speed damping.
Details:- Bearings: Fk Bearings Heat-treated steel spherical bearings, PTFE-lined
- Body Material: SSID Alloy Steel
- Body Style: SSID Alloy Steel Tube
- Collapsed Length: 21.5
- Diameter: 2.5 Inch
- Extended Length: 33.5
- Finish: Zinc Plated w/Clear Coat
- Material: SSID Steel
- Mount: Universal Spherical Bearing And Hardware
- Oil: Rst Synthetic Foam Resistant High Temp Suspension Fluid
- Piston: 2.0 6061 T6 Billet Aluminum Rst HiFloRace Piston (Type Ii Hard Anodized)
- Reservoir Type: Remote Reservoir
- Rod: Stainless Steel
- Rod Finish: Mirror Polished Chrome Plated
- Rod Guide Finish: PTFE Coating
- Rod Material: Machined Bronze
- Seal: 3 Stage Redundant Seal Cap w/Mechanical Scraper - (Nbr or Viton)*
- Series: Works Drt
- Shaft Size: 7/8 Inch 17-4PH Stainless Stee
- Style: Universal
- Valving: Tunable, Velocity-sensitive valve shims
- Country of Origin: USA
