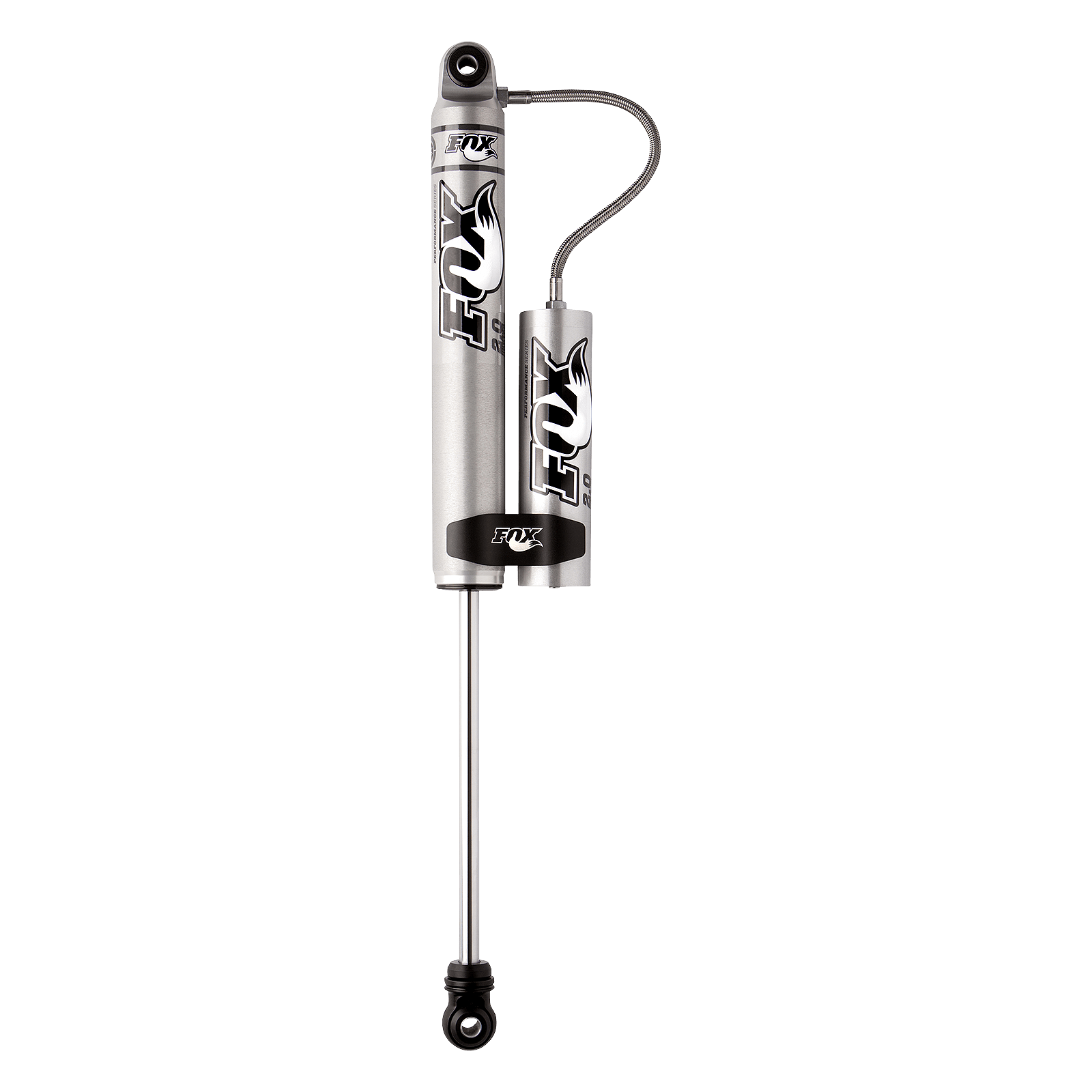

The aluminum bodied Performance Series 2.0 Reservoir smooth Body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package.
Its heat reducing design includes a metal impacted clear anodized aluminum shock Body that dissipates heat faster than a conventional steel Body shock.
Its external Reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized Reservoir mounting clamp and other Components are CNC machined from 6061-T6 aluminum.
The race developed high flow damping Piston matched with application specific Valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.
Features
- Includes Aluminum Reservoir Clamp, Performance Tuned For Vehicle Specific Application, Aluminum Body Dissipates Heat Faster Than Steel, External Reservoir System Dissipates Heat Fast, Black Anodized CNC Machined Aluminum Components
- Series Performance
- Travel 11.62
- Front Lift Height 6.5-8 Inch
- Body 2.0 Inch Impact extruded 6061-T6 aluminum will resist rust over time
- Body Plating Clear-anodized for a durable finish
- Components Black-anodized, CNC-machined 6061-T6 billet aluminum
- Shaft 5/8 Inch hard chrome plated heat-treated alloy steel
- Piston Race-developed high-flow Piston design
- Valving Application specific Valving to maximize performance
- Seals Redundant sealing pack system main seal, wiper seal, scraper seal
- Extended Length 28.87
- Compressed Length 17.25
- Top Mount SM3
- Bottom Mount BP1
- Fitment Notes Includes Billet Reservoir Clamp
