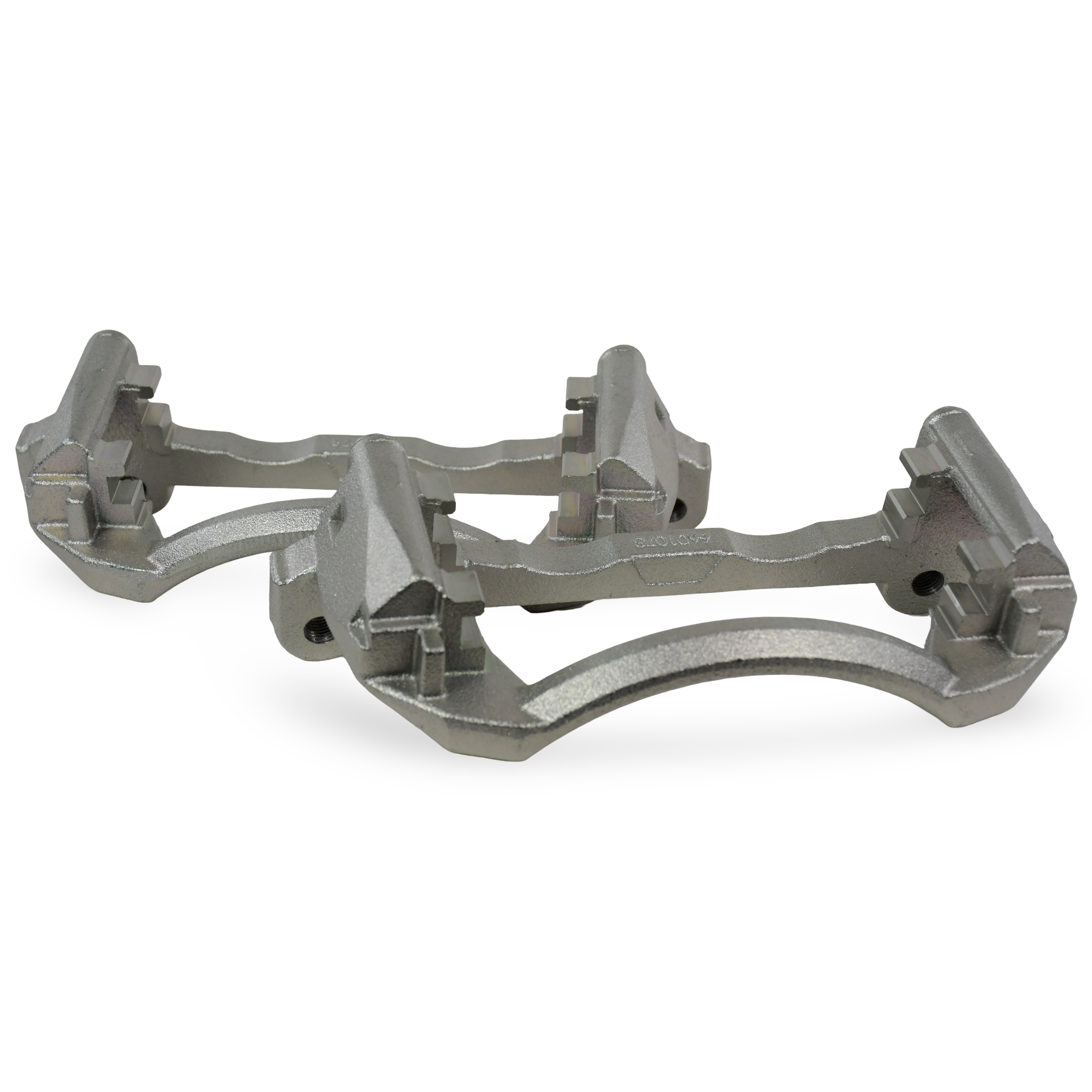

Upgrade your stopping power without breaking the bank with the Baer Big Claw HD brake kit. The Big Claw HD kit includes a pair of larger than stock diameter rotors (up to 2 inches larger on some applications) that are purpose cast with directional cooling vanes, along with a pair of new caliper relocation brackets to move the calipers outward to accommodate the larger rotors while maintaining OE Pad and hardware fitment.
Independent third-party testing showed up to a 49 percent gain in braking effectiveness due to the increased brake torque and leverage from the larger diameter rotors, along with as much as a 200-degree reduction in brake rotor temperatures vs OE in extreme conditions due in part to the curved vane design. Together, these equal improved stopping distances, reduced brake fade and enhanced braking confidence all at a fraction of the cost of other leading replacement kits.
Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee the fit of the Big Claw HD rotors into a specific wheel. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice, including spare tire/wheel.
Details:- Drive: 2WD, 4WD
- ABS Tone Ring Included: No
- Applications: GM 2500/3500 HD 20-24
- Axle: Front
- Center Hole Diameter: 5.006
- Construction: One Piece, Full Cast
- Conventional Or Drum-In-Hat Type Rotor: Conventional
- Directional or Non-Directional Brake Surface: Directional
- Disc Finish: Zinc Plated
- Discard Thickness: 1.496
- Emission Code: 6
- Export Description: Brake Components
- Floating: Yes
- Grade Type: Performance
- Material: Cast Iron
- Mounting Bolt Hole Circle Diameter: 7.086
- Mounting Bolt Hole Diameter: 0.641
- Mounting Bolt Hole Quantity: 8
- Nominal Thickness: 1.575
- Outside Diameter: 15
- Overall Height: 4.03
- Rust Resistant Coating: Yes
- Solid Or Vented Type Rotor: Vented
- Stud/Lug Hole Quantity: 8
- Surface Type: Slotted
- Template: Z206U
- Vent Type Design: Curved
- Warranty: Limited 1 Year Warranty
