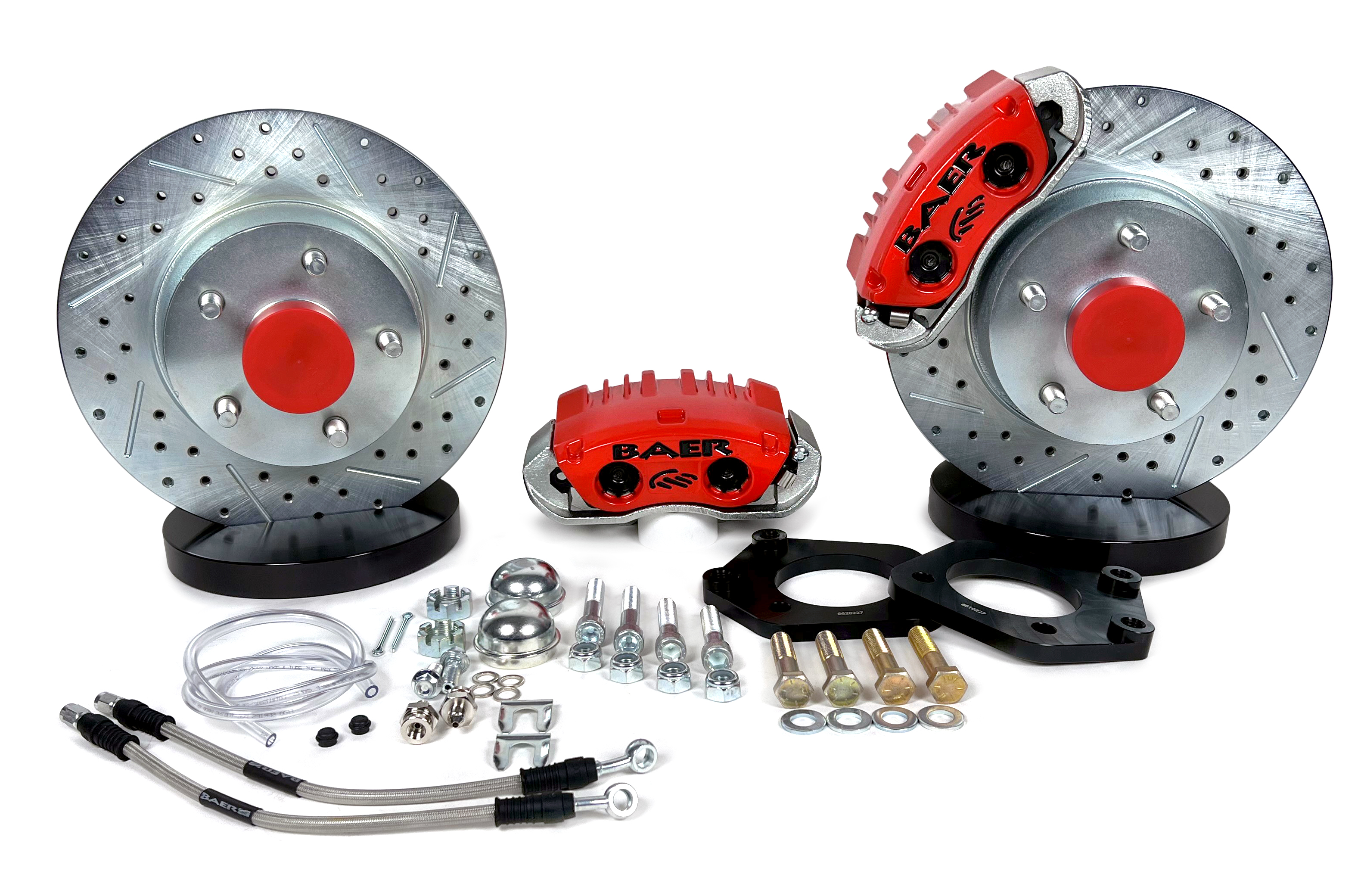

29 inch, 1-piece slot, drill, zinc plated integral hub rotor. The PGC caliper comes in a red powder coated finish with a black logo, includes dust/weather seal's and uses the popular D412 pad type.
The system includes premium bearings with races pre-installed, dust caps, mounting brackets, stainless braided hoses and all necessary hardware. 29 inch Classic system fits select 14 inch and most 15 inch or larger wheels.
Important: This system is designed for vehicles with a 15/16 inch master cylinder and proper pedal ratio.
For manual brake setups, a 7/8 inch master cylinder can be used so less effort is required to apply the brakes. Any master larger than 15/16 inch will require too much pedal input to generate proper line pressure for your brake system.
Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.Baer Brakes 11 inch Classic Series Front Brake Kit Fits 1970-73 Ford Mustang, 70-71 Fairlane, 70 Falcon, 70-74 Maverick, 70-71 Torino and 1970-73 Mercury Cougar, 70-74 Comet, 70-71 Montego and 70-71 Cyclone (all w/OE Disc or Drum Brake Spindles)
Details:
- Fitment Notes: w/OE Disc Brake Spindles, w/OE Drum Brake Spindles
- Caliper: 2 PGC
- Caliper Color: Red
- Disc Brake Rotor (Front) Outside Diameter: 11.29 Inch
- Applications: Ford Fairlane 70 (w/Disc), Ford Mustang 70-73 (w/Drum), Ford Mustang 71-73 (w/Disc), Mercury Cougar 71-73 (w/Disc), Mercury Montego 70-71 (w/Disc), Mercury Cyclone 70-71 (w/Disc), Mercury Cyclone 70 (w/Drum), Mercury Cougar 70-73 (w/Drum), Ford Fairlane 70 (w/Drum), Mercury Montego 70-71 (w/Drum), Ford Maverick 70-74 (w/Drum), Ford Torino 70-71 (w/Disc), Mercury Comet 71-74 (w/Drum), Ford Mustang 70 (w/Disc), Ford Falcon 70 (w/Drum), Ford Torino 70-71 (w/Drum), Mercury Cougar 70 (w/Disc)
- Axle: Front
- Box Count: 2
- Brake Hose DOT Approved: Yes
- Disc Brake Caliper (Front) Piston Quantity: 2
- Disc Brake Caliper (Front) Type: Floating
- Disc Brake Pad FMSI Number: D0412
- Disc Brake Rotor (Front) Construction: Vented
- Emission Code: 6
- Export Description: Brake Components
- Friction Material Composition: Ceramic
- Grade Type: Performance
- Hose Material: Steel Braided
- Lug Count: 5 Lug
- Min Wheel Diameter: 15.0 Inch
- Rotor Diameter: 11.29
- Rotor Thickness: 0.94
- Rotor Type: 1-Piece Integral Hub
- Solid Or Vented Type Rotor: Vented
- Surface Type: Slotted, Drilled and Zinc Plated
- Template: D200A
- Wheel Lug/Bolt Pattern: 5x4.50
- Wheel Stud Size: 43832
