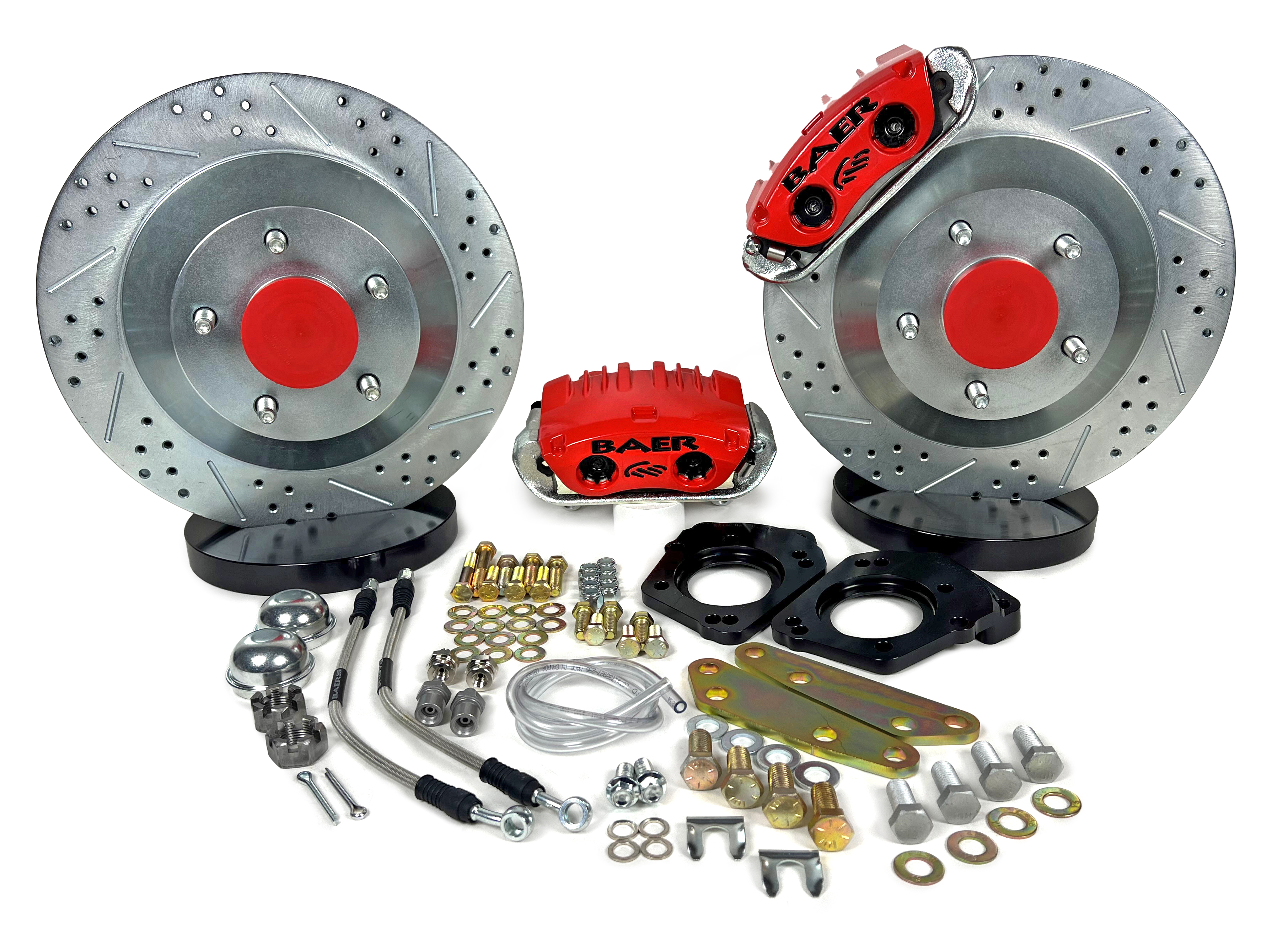

This system features the Original Baer 2-piston, pad guided caliper (PGC) mounted to a 13 inch, 1-piece slot, drill, zinc plated integral hub rotor. The PGC caliper comes in a red powder coated finish with a black logo, includes dust/weather seal's and uses the popular D412 pad type.
The system includes premium bearings with races pre-installed, dust caps, mounting brackets, stainless braided hoses and all necessary hardware. The 13 inch Classic system fits select 17 inch or larger wheels.
Important: This system is designed for vehicles with a 15/16 inch master cylinder and proper pedal ratio.
For manual brake setups, a 7/8 inch master cylinder can be used so less effort is required to apply the brakes. Any master larger than 15/16 inch will require too much pedal input to generate proper line pressure for your brake system.
Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.Baer Brakes 13 inch Classic Series Front Brake Kit Fits 1965-69 Ford Mustang, 62-69 Fairlane, 63-69 Falcon, 69 Ford Torino and 1967-69 Mercury Cougar, 66-69 Comet and 69 Cyclone (all w/OE Disc or Drum Brake Spindles)
Details:
- Fitment Notes: w/OE Drum Brake Spindles, w/OE Disc Brake Spindles
- Caliper: 2 PGC
- Caliper Color: Red
- Disc Brake Rotor (Front) Outside Diameter: 13.0 Inch
- Applications: Mercury Cyclone 68-69 (w/Disc), Ford Fairlane 62-69 (w/Drum), Mercury Cyclone 69 (w/Drum), Ford Torino 69 (w/Drum), Mercury Comet 66-69 (w/Drum), Mercury Cougar 68-69 (w/Disc), Mercury Comet 68-69 (w/Disc), Ford Mustang 68-69 (w/Disc), Ford Falcon 63-69 (w/Drum), Ford Falcon 68-69 (w/Disc), Ford Mustang 65-69 (w/Drum), Mercury Cougar 67-69 (w/Drum), Ford Fairlane 68-69 (w/Disc), Ford Torino 68-69 (w/Disc), Mercury Cougar 67 (w/Disc), Ford Mustang 67 (w/Disc)
- Axle: Front
- Box Count: 2
- Brake Hose DOT Approved: Yes
- Disc Brake Caliper (Front) Piston Quantity: 2
- Disc Brake Caliper (Front) Type: Floating
- Disc Brake Pad FMSI Number: D0412
- Disc Brake Rotor (Front) Construction: Vented
- Emission Code: 6
- Export Description: Brake Components
- Friction Material Composition: Ceramic
- Grade Type: Performance
- Hose Material: Steel Braided
- Lug Count: 5 Lug
- Min Wheel Diameter: 17.0 Inch
- Rotor Diameter: 13
- Rotor Thickness: 1.1
- Rotor Type: 1-Piece Integral Hub
- Solid Or Vented Type Rotor: Vented
- Surface Type: Slotted, Drilled and Zinc Plated
- Template: D082H
- Wheel Lug/Bolt Pattern: 5x4.50
- Wheel Stud Size: 43832
