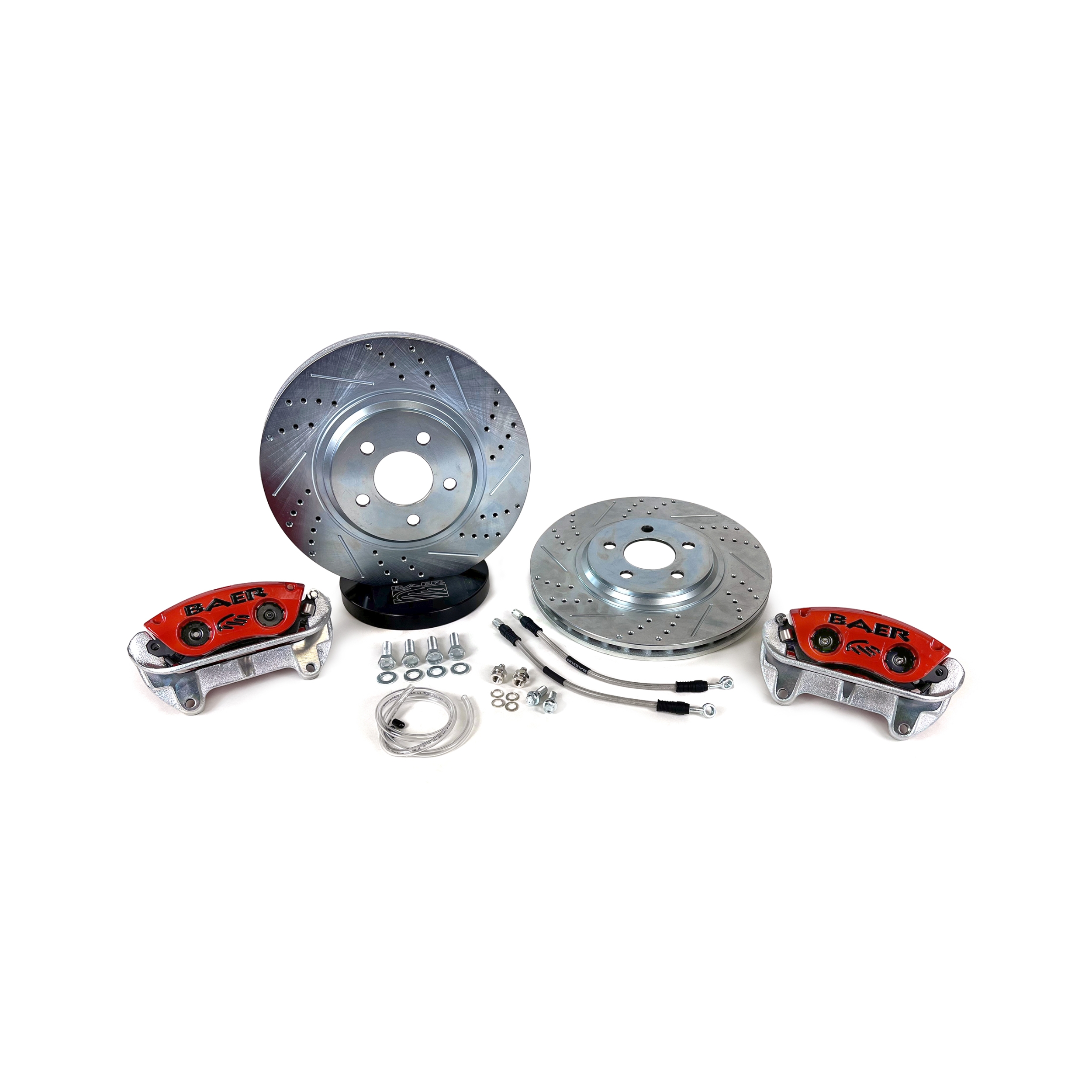

This system features the Original Baer 2-piston, pad guided caliper (PGC) mounted to a 13 inch, 1-piece slot, drill, zinc plated rotor. The PGC caliper comes in a red powder coated finish with a black logo, includes dust/weather seal's and uses the popular D412 pad type.
The system is designed to fit 94-04 Mustang (SN95) with OE spindles and hubs. Mounting brackets, stainless braided hoses and all necessary hardware are included.
The 13 inch Classic system fits select 17 inch or larger wheels.
Important: This system is designed for vehicles with a 15/16 inch master cylinder and proper pedal ratio.
For manual brake setups, a 7/8 inch master cylinder can be used so less effort is required to apply the brakes. Any master larger than 15/16 inch will require too much pedal input to generate proper line pressure for your brake system.
Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.Baer Brakes 13 inch Classic Series Front Brake Kit Fits 94-04 Ford Mustang w/OE Spindles and Hubs
Details:
- Fitment Notes: w/OE Spindles and Hubs
- Caliper: 2 PGC
- Caliper Color: Red
- Disc Brake Rotor (Front) Outside Diameter: 13.0 Inch
- Applications: Ford Mustang 94-04
- Axle: Front
- Box Count: 2
- Brake Hose DOT Approved: Yes
- Disc Brake Caliper (Front) Piston Quantity: 2
- Disc Brake Caliper (Front) Type: Floating
- Disc Brake Pad FMSI Number: D0412
- Disc Brake Rotor (Front) Construction: Vented
- Emission Code: 6
- Export Description: Brake Components
- Friction Material Composition: Ceramic
- Grade Type: Performance
- Hose Material: Steel Braided
- Min Wheel Diameter: 17.0 Inch
- Rotor Diameter: 13
- Rotor Thickness: 1.1
- Rotor Type: 1-Piece Integral Hub
- Solid Or Vented Type Rotor: Vented
- Surface Type: Slotted, Drilled and Zinc Plated
- Template: D082H
- Wheel Lug/Bolt Pattern: 5x4.50
