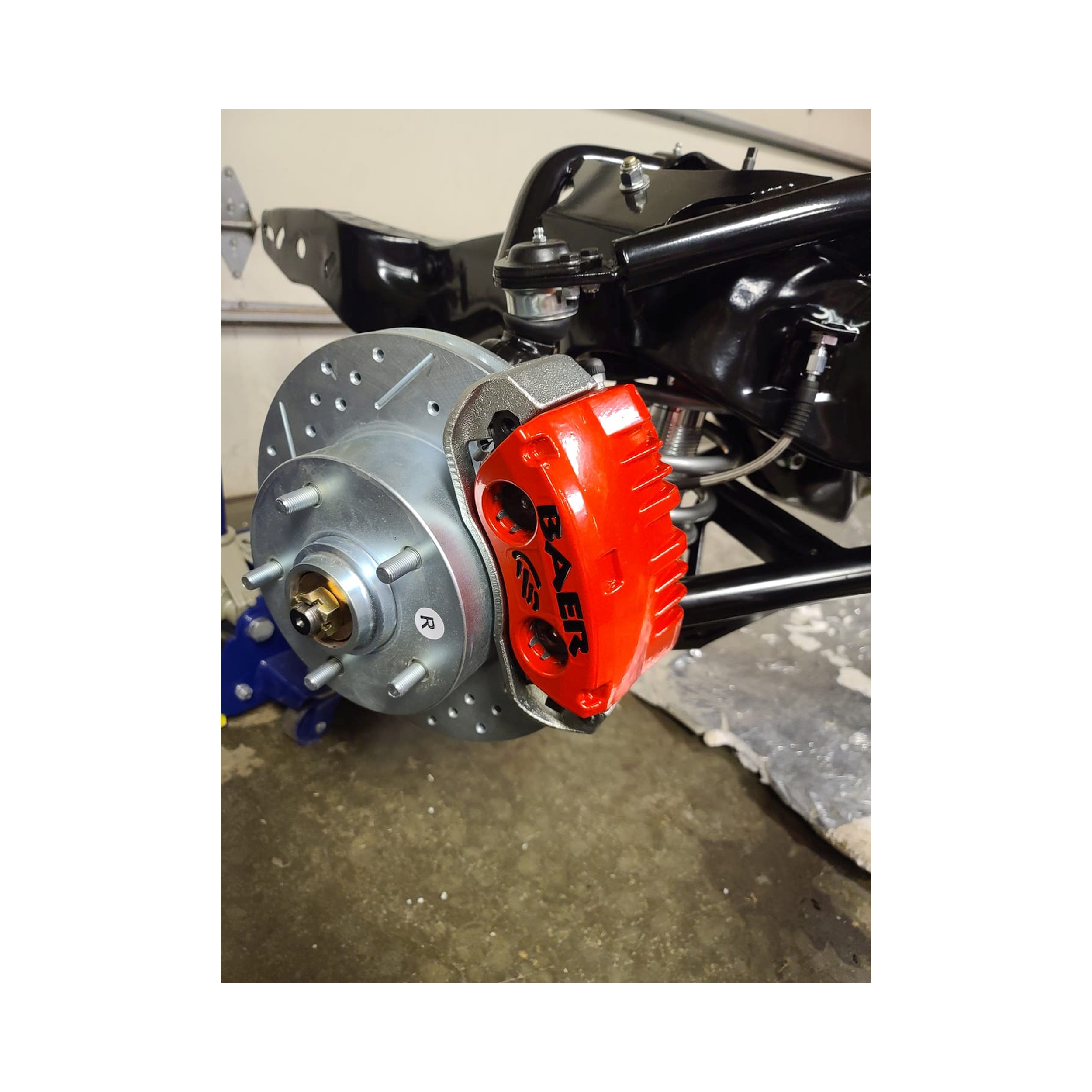

29 inch, 1-piece slot, drill, zinc plated integral hub rotor. The PGC caliper comes in a red powder coated finish with a black logo, includes dust/weather seal's and uses the popular D412 pad type.
The system includes premium bearings with races pre-installed, dust caps, mounting brackets and all necessary hardware. 29 inch Classic system fits select 14 inch and most 15 inch or larger wheels.
Important: This system is designed for vehicles with a 15/16 inch master cylinder and proper pedal ratio.
For manual brake setups, a 7/8 inch master cylinder can be used so less effort is required to apply the brakes. Any master larger than 15/16 inch will require too much pedal input to generate proper line pressure for your brake system.
Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.Baer Brakes 11 inch Classic Series Front Brake Kit Fits Applications Using Wilwood Pro Mii Spindes, 5x4.75 inch Bc
Details:
- Fitment Notes: w/Wilwood Pro Mii Spindes (5x4.75BC)
- Caliper: 2 PGC
- Caliper Color: Red
- Disc Brake Rotor (Front) Outside Diameter: 11.29 Inch
- Axle: Front
- Box Count: 2
- Brake Hose DOT Approved: Yes
- Disc Brake Caliper (Front) Piston Quantity: 2
- Disc Brake Caliper (Front) Type: Floating
- Disc Brake Pad FMSI Number: D0412
- Disc Brake Rotor (Front) Construction: Vented
- Emission Code: 6
- Export Description: Brake Components
- Friction Material Composition: Ceramic
- Grade Type: Performance
- Hose Material: Steel Braided
- Min Wheel Diameter: 15.0 Inch
- Rotor Diameter: 11.29
- Rotor Thickness: 0.94
- Rotor Type: 1-Piece Integral Hub
- Solid Or Vented Type Rotor: Vented
- Spindle Type: Wilwood Mustang Ii Pro
- Surface Type: Slotted, Drilled and Zinc Plated
- Template: D200A
- Wheel Lug/Bolt Pattern: 5x4.75
- Wheel Stud Size: 43832
