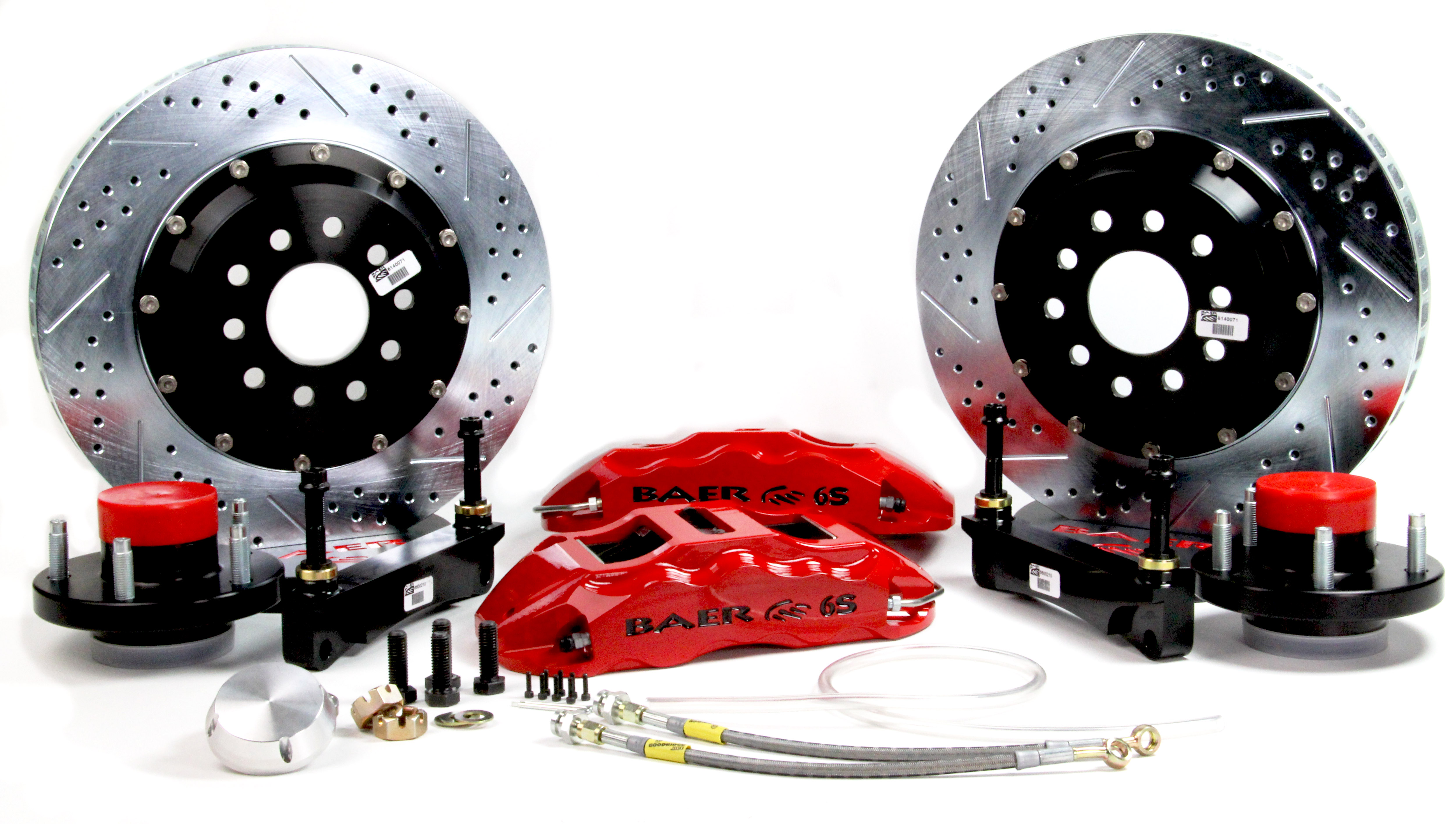

The Extreme Plus system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 14 inch, 2 piece slot, drill, zinc plated rotor. The 6S caliper is fully machined in Phoenix, Az from a Us sourced 2618 Aluminum forging, includes stainless steel pistons and abutments, dust and weather seals and uses the popular D1247 pad type.
Rotors are pre-assembled with NAS high grade stainless hardware. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps.
All mounting brackets, stainless braided hoses and hardware are also included. The 14 inch Extreme Plus fits most 18 inch or larger wheels.
Increases track width .200 inch Per Side on OE drum spindles Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.Details:
- Fitment Notes: w/OE, Dse, Heidt's, Fatman, Ridetech and L&H Drop Spindles
- Caliper: 6S
- Caliper Color: Fire Red
- Disc Brake Rotor (Front) Outside Diameter: 14.0 Inch
- Applications: GM A-Body 64-72, GM X-Body 64-74, GM F-Body 67-69
- Axle: Front
- Disc Brake Caliper (Front) Piston Quantity: 6
- Disc Brake Caliper (Front) Type: Fixed
- Disc Brake Pad FMSI Number: D1247
- Disc Brake Rotor (Front) Construction: Vented
- Emission Code: 6
- Export Description: Brake Components
- Grade Type: Performance
- Hose Material: Stainless Steel
- Lug Count: 5 Lug
- Min Wheel Diameter: 18.0 Inch
- Rotor Thickness: 1.25
- Rotor Type: 2-Piece
- Spindle Type: GM Afx (also fits Dse, Heidt's, Fatman, Ridetech and L&H 2 Inch drop spindles)
- Spindles Included: No
- Surface Type: Slotted, Drilled and Zinc Plated
- Template: N085P
- Wheel Lug/Bolt Pattern: 5x4.75
- Wheel Stud Size: 1/2-20 x 2.25 Inch
