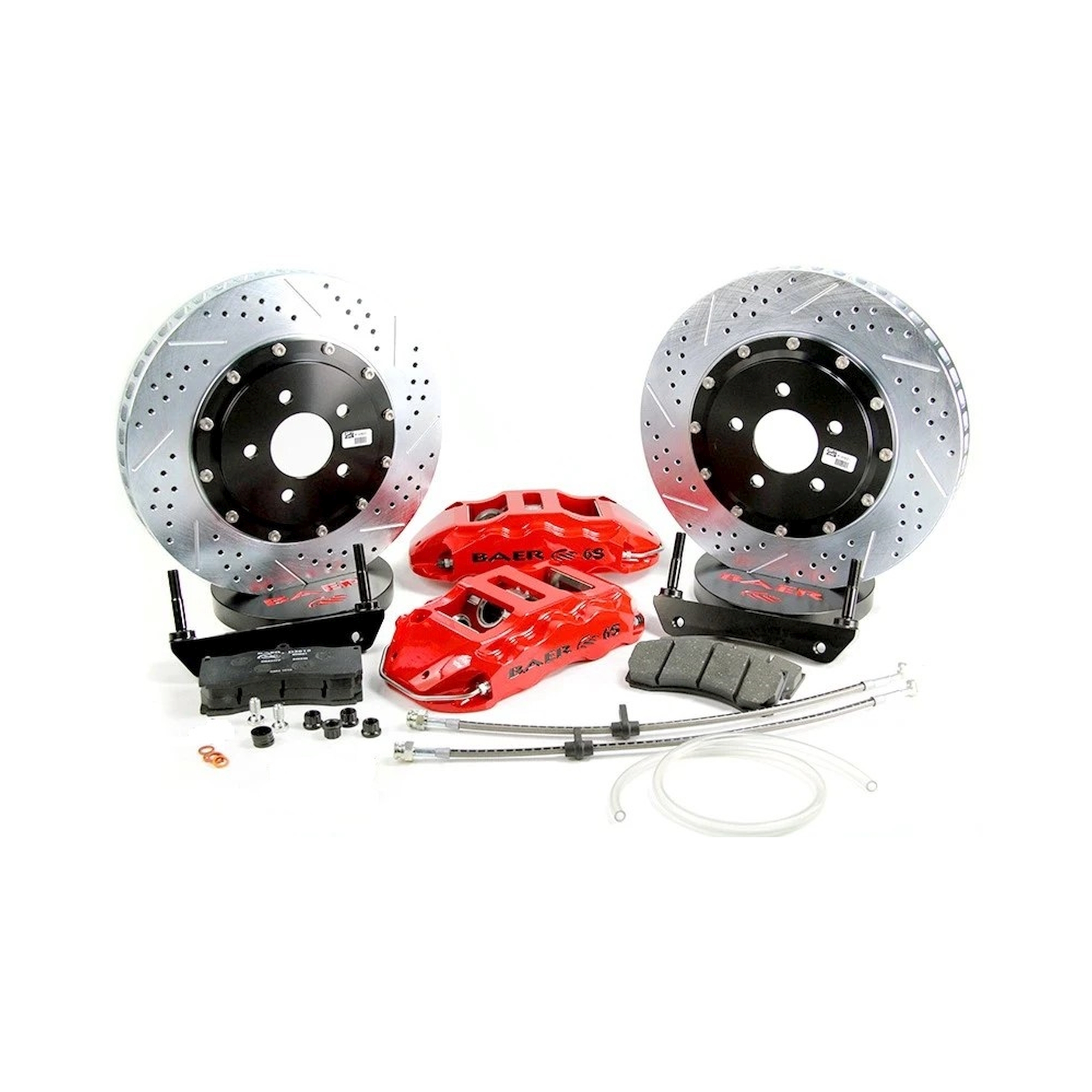

The Extreme Plus system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 14 inch, 2 piece slot, drill, zinc plated rotor. compliant dust and weather seals and uses the popular D1247 pad type.
Rotors are pre-assembled with NAS high grade stainless hardware. All mounting brackets, stainless braided hoses and hardware are also included.
The 14 inch Extreme Plus fits most 18 inch or larger wheels.
Note: On 1979-93 Fox Mustang cars a master cylinder upgrade is recommended 79-86 Cars - Use p/n 6800092 which includes a 15/16 inch bore master cylinder, 2 hard lines and fittings. This kit is a direct bolt on. 87-93 Cars - Use p/n 6800096 which includes a 15/16 inch bore master cylinder, 3 hard lines and fittings.This kit is a direct bolt on designed to convert cars with a factory 3-port master cylinder, to a 2-port. Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer.
To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.
Details:
- Fitment Notes: w/94-04 Spindles and Hubs
- Caliper: 6S
- Caliper Color: Comp Yellow
- Disc Brake Rotor (Front) Outside Diameter: 14.0 Inch
- Applications: Ford Mustang 79-93 (w/SN95 Spindles), Ford Mustang 94-04
- Axle: Front
- Disc Brake Caliper (Front) Piston Quantity: 6
- Disc Brake Caliper (Front) Type: Fixed
- Disc Brake Pad FMSI Number: D1247
- Disc Brake Rotor (Front) Construction: Vented
- Emission Code: 6
- Export Description: Brake Components
- Grade Type: Performance
- Hose Material: Stainless Steel
- Lug Count: 5 Lug
- Min Wheel Diameter: 18.0 Inch
- Rotor Thickness: 1.25
- Rotor Type: 2-Piece
- Surface Type: Slotted, Drilled and Zinc Plated
- Template: N066P
- Wheel Lug/Bolt Pattern: 5x4.50
