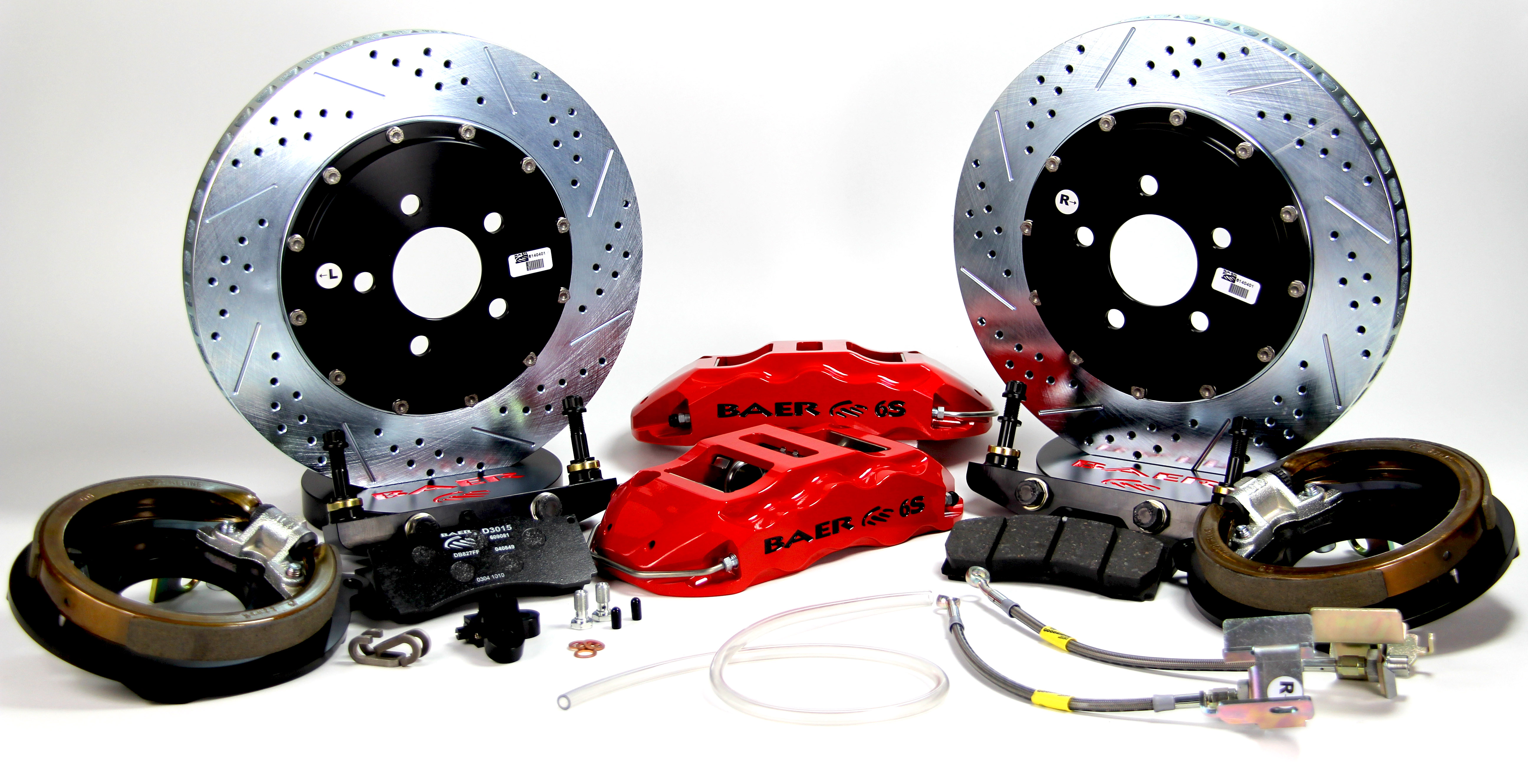

The Extreme Plus system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 14 inch, 2 piece slot, drill, zinc plated rotor. compliant dust and weather seals and uses the popular D1247 pad type.
Rotors are pre-assembled with NAS high grade stainless hardware. Baer's unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly.
Stainless braided hoses and hardware are also included. The 14 inch Extreme Plus fits most 18 inch or larger wheels.
Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.Details:
- Caliper: 6S
- Caliper Color: Grabber Blue
- Disc Brake Rotor (Rear) Outside Diameter: 14.0 Inch
- Axle: Rear
- Axle Flange: Ford 9 Inch Early Big Bearing
- Disc Brake Caliper (Rear) Piston Quantity: 6
- Disc Brake Caliper (Rear) Type: Fixed
- Disc Brake Pad FMSI Number: D1247
- Disc Brake Rotor (Rear) Construction: Vented
- Emission Code: 6
- Export Description: Brake Components
- Grade Type: Performance
- Hose Material: Stainless Steel
- Includes Park Brake: Yes
- Includes Park Brake Cables: No
- Lug Count: 5 Lug
- Min Wheel Diameter: 18.0 Inch
- Rotor Thickness: 1.25
- Rotor Type: 2-Piece
- Surface Type: Slotted, Drilled and Zinc Plated
- Template: N085P
- Wheel Lug/Bolt Pattern: 5x4.50/5x4.75
