4R100 Stage 6 Package 1999-2003 Ford 4Wd W/ Pto ATS Diesel

The factory Ford 4R100 suffers from weak points in the converter, clutch pack assemblies, valve body and line pressure limitations. These weaknesses arise when the motor's power is increased or in towing applications. ATS addressed these concerns by re-designing the torque converter, transmission pump, valve body and clutch packs. The result is a solid transmission setup to meet the demands of your Ford Super Duty.
The ATS Stage 6 includes all the bells and whistles available on a 4R100. This package is designed as a one-and-done transmission, regardless of power level or use. The Stage 6 Features:
<ul>
<li>ATS Five Star Torque Converter featuring a billet cover, five lock-up clutches, billet stator and a furnace-brazed impeller</li>
<li>ATS Billet Input Shaft</li>
<li>ATS Co-Pilot Transmission Lock-up Controller</li>
<li>ATS Billet Flex Plate</li>
<li>ATS Billet Intermediate Shaft</li>
<li>ATS Billet Output Shaft</li>
<li>Modified transmission pump for increased line pressure</li>
<li>High performance clutch packs with more clutches than stock</li>
<li>Re-designed accumulator pistons for a precise shift feel</li>
<li>ATS Deep Transmission Pan that adds 5 quarts of fluid, featuring a finned design, magnetic drain plug and is tapped for a temperature probe</li>
</ul>
By increasing the line pressure, clutch pack surface area and modifying the valve body, the 4R100 becomes a consistent, responsive and dependable transmission. The Stage 6 includes a billet 300M input shaft. As power increases over 400hp, or considerable weight will be towed, the input shaft takes the brunt of it. The ATS input shaft is designed to withstand extreme torque, converter lock-up sooner than stock, and competition and towing use.
The Stage 6 package includes a Co-Pilot Transmission Lock-up Controller. This controller allows the user to lock the converter based on vehicle speed. The result is more power to the ground at a lower speed, thus improving acceleration, lowering transmission temperatures and helping fuel economy. The Co-Pilot will also synchronize torque converter lock-up with an exhaust brake, for added braking force.
This package is also equipped with a billet flex plate. The flex plate becomes important in high horsepower/torque applications, during competition use, or when towing heavy loads. By increasing the reliability of the flex plate, we can ensure a solid transfer of power from the motor to the transmission.
For competition and extreme towing, we add a billet intermediate and output shaft to the Stage 6 Package. By absorbing and transferring extreme power and load, the billet shafts increase reliability in the 4R100 platform. The result is a transmission built for drag racing, sled pulling, dyno competitions or towing extreme loads.
The ATS Stage 6 4R100 is designed for trucks that see daily driving and extreme towing duties, aggressive tuning, competition use and a modified turbo and injectors. ATS transmissions are backed by a 5 year / 500,000 mile warranty, regardless of power level or use.

Fits 1999-2003 Ford F-250 Super Duty Lariat F-250 Super Duty XL F-350 Super Duty Lariat F-350 Super Duty XL 2003 King Ranch

I ordered a brake kit, rotors and pads, over the weekend and they arrived Tuesday. Thank you!! Really needed these ASAP. Getting them put on as I write this. Also, could not beat the price.

Great Price, Great Service

Everything is in working condition very easy to install. Would buy again from this seller  Go AutoParts4Less.

Hood Shocks

Great product, Amazing Price

Recommended to purchase your parts from here

Great Service!

Accessories

A/C & Heater Controls

A/C Compressor & Clutch

A/C Hoses & Fittings

Blower Motors

Condensers & Evaporators

Heater Parts

Other

Air Conditioning & Heat

Air Cleaner Assemblies

Air Intake Systems

Carburetor Parts

Carburetors

Chokes

Fuel Inject. Controls & Parts

Fuel Injectors

Fuel Pumps

Fuel Tanks

Intake Manifold

Sensors

Throttle Body

Air Intake & Fuel Delivery

ABS System Parts

Brake Component Packages

Brake Hoses

Brake Lines

Caliper Parts

Discs, Rotors & Hardware

Drums & Hardware

Master Cylinders & Parts

Pads & Shoes

Parking Brake Cables

Sensors & Switches

Trailer Brakes

Wheel Cylinders & Parts

Brakes & Brake Parts

Alternator & Generator Parts

Alternators & Generators

Batteries

Battery Cables & Connectors

Battery Trays

Starter Parts

Starters

Voltage Regulators

Charging & Starting Systems

Cruise Control Units

Engine Computers

Performance Chips

Computer, Chip, Cruise Control

Fans & Kits

Hoses & Clamps

Oil Coolers

Radiators & Parts

Thermostats & Parts

Water Pumps

Cooling Systems

Decals & Stickers

Emblems

License Plate Frames

Decals/Emblems/License Frames

Chargers & Service Equipment

Controllers

Conversion Kits

Converters & Inverters

Electric Vehicle Batteries

Motors

Electric Vehicle Parts

Air Bypass Valve

EGR Valves & Parts

Emission Modules/Control Units

Smog/Air Pumps

Emission Systems

Belts, Pulleys & Brackets

Block Parts

Camshafts, Lifters & Parts

Complete Engines

Crankshafts & Parts

Cylinder Heads & Parts

Engine Bearings

Engine Rebuilding Kits

Motor Mounts

Oil Filler Caps

Oil Pans

Oil Pumps

Pistons, Rings, Rods & Parts

Rocker Arms & Parts

Timing Components

Vacuum Pumps

Valve Covers

Valves & Parts

Engines & Components

Catalytic Converters

Exhaust Manifolds & Headers

Exhaust Pipes & Tips

Exhaust Systems

Hangers, Clamps & Flanges

Heat Risers

Mufflers

Exhaust

ATVs, Side-by-Sides & UTVs for Parts

Bumpers

Doors

Fenders

Frames

Grab Bars & Guards

Handlebars, Levers & Mirrors

Pedals & Pegs

Racks & Luggage

Seats

Windshields

Body & Frame

A-arms

Axle Parts

Brake Covers

Brake Levers & Pedals

Brake Lines & Hoses

Brake Pads & Shoes

Discs, Calipers & Hardware

Lift Kits

Lowering Kits

Master Cylinders

Shocks & Swingarms

Springs

Brakes & Suspension

Decals, Emblems

Electrical Components

Air Filters & Parts

Air Pipes & Hoses

Carburetors & Throttlebodies

Fuel Caps

Fuel Filters

Fuel Jets & Injectors

Fuel Pipes & Hoses

Fuel Valves & Petcocks

Gaskets & Rebuild Kits

Intake & Fuel Systems

Lighting

Transmissions & Chains

Covers

Decals

Paint & Maintenance

Safety Gear & Devices

Seating

Storage

Accessories & Gear

Anchoring, Docking

Body Parts

Controls & Steering

Deck & Cabin Hardware

Electrical & Lighting

Antennas

Compasses

Fish Finders & Depth Finders

GPS & Chartplotters

Other Electronics & Navigation

Radar & Autopilots

Radio & Communications

Electronics & Navigation

Belts & Pulleys

Complete Diesel Engines

Complete Gas Engines

Electrical Systems

Ignition & Starting Systems

Oil Systems

Transmission & Components

Inboard Engines & Components

Interior, Cabin & Galley

Jet Drives

Marine Batteries

Marine Rope

Auxiliary Power Units (APUs)

Navigation

Onboard Tools

Other Commercial Truck Accessories

Safety & Security

A/C Accumulators

A/C Compressors & Clutches

A/C Condensers

A/C Evaporators

Dash Fans

Air Conditioning & Heating

Year	Make	Model	SubModel	Engine
2023	Ford	F-250 Super Duty	King Ranch	6 7L V8
2023	Ford	F-250 Super Duty	King Ranch	7 3L V8
2023	Ford	F-250 Super Duty	Lariat	6 7L V8
2023	Ford	F-250 Super Duty	Lariat	7 3L V8
2023	Ford	F-250 Super Duty	Limited	6 7L V8
2023	Ford	F-250 Super Duty	Platinum	6 7L V8
2023	Ford	F-250 Super Duty	Platinum	7 3L V8
2023	Ford	F-250 Super Duty	XL	6 8L V8
2023	Ford	F-250 Super Duty	XLT	7 3L V8
2023	Ford	F-350 Super Duty	King Ranch	6 7L V8

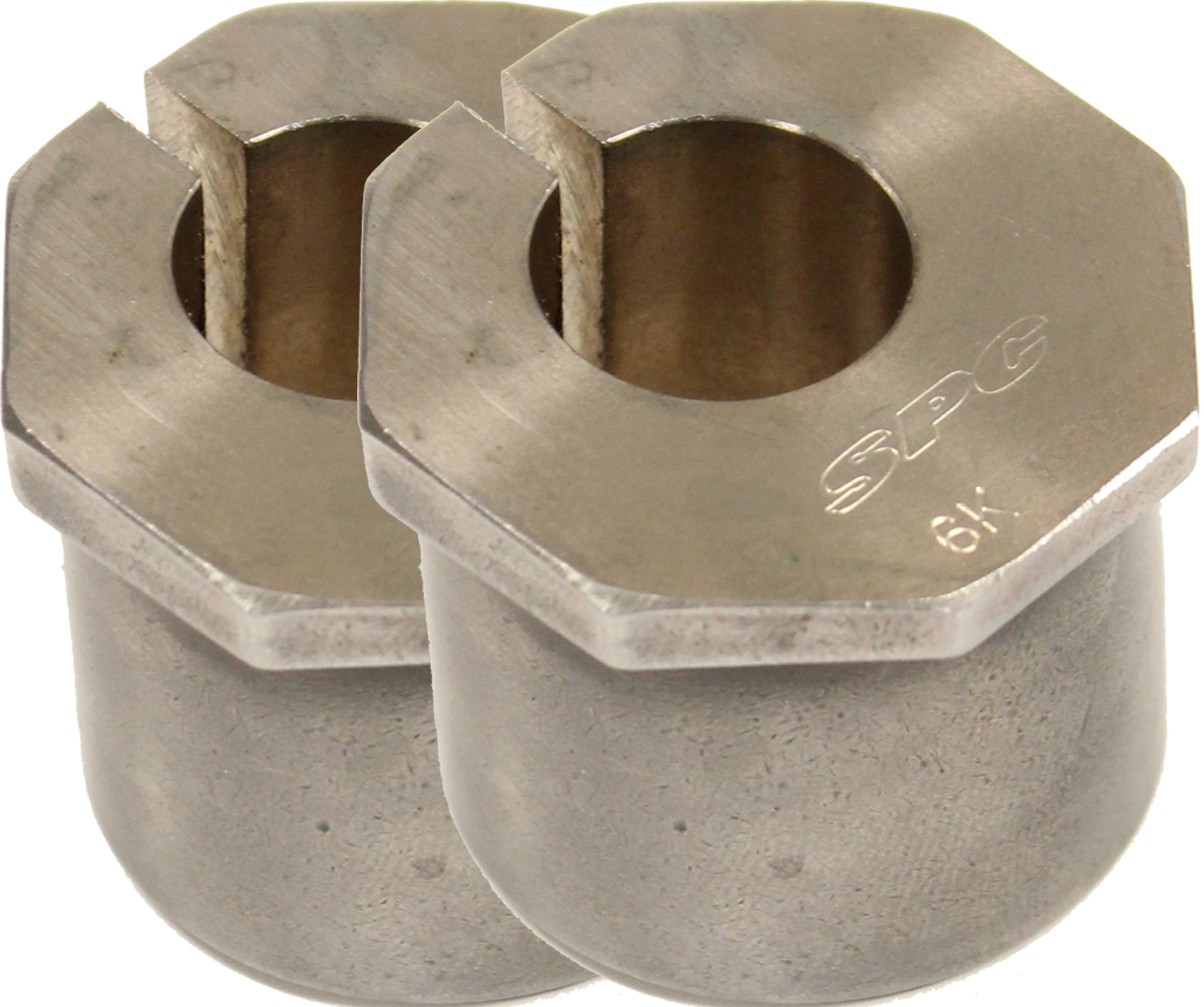

Hardware Castershim 1 degree of positive caster 2005-2023 Ford F-250/F-350 Super Duty 4x4 Carli Suspension
