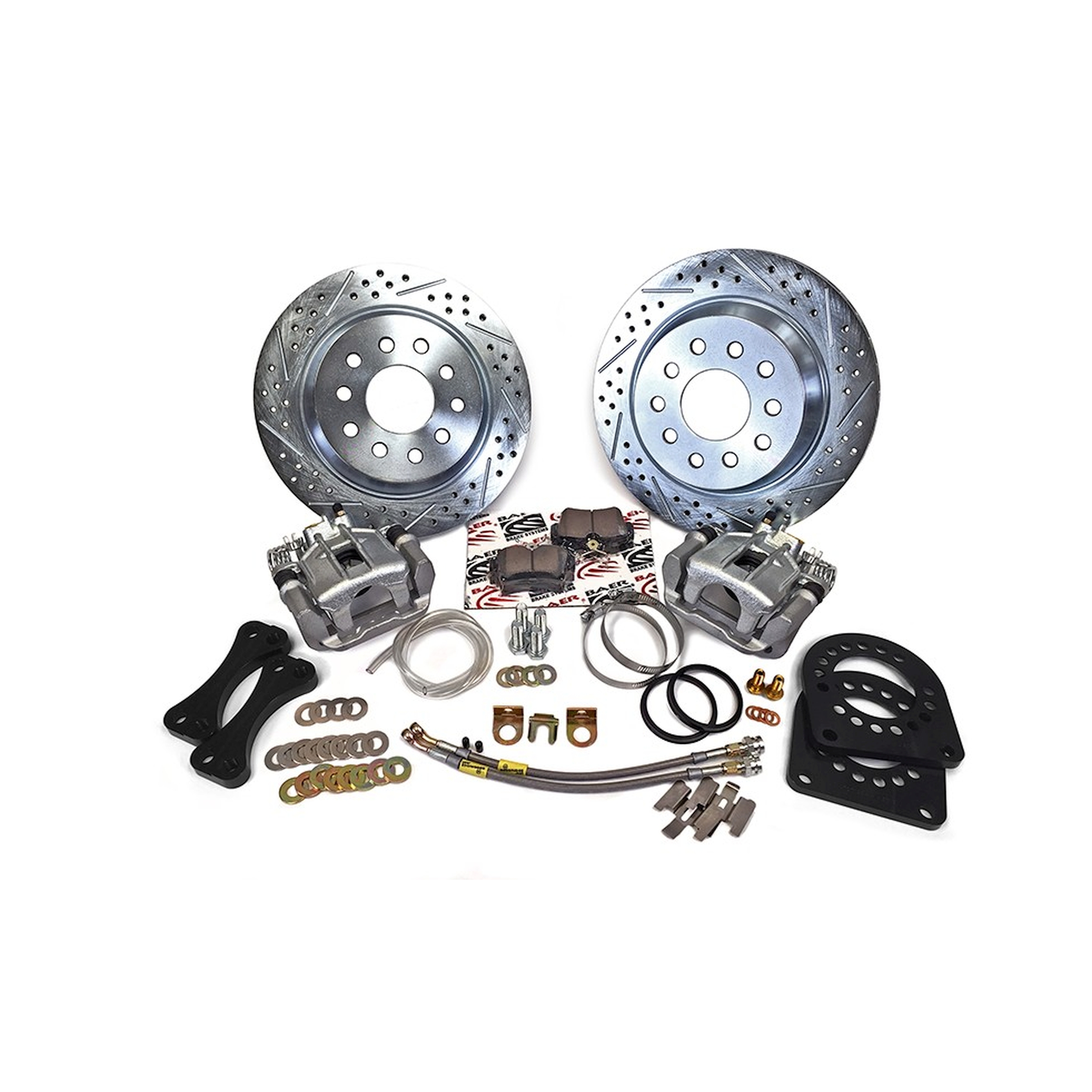

625 inch 1-piece slot, drill, zinc plated rotor. The IronSport system includes calipers, rotors, brackets, hardware, stainless braided brake hoses and fittings.
The IronSport is the most cost effective, full feature drum to disc conversions available. 65 inch IronSport fits some 15 inch and most 16 inch or larger wheels.
Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.IronSport Rear 1-1 General Fit Mopar Dana 60 and 8.75 Dana 60 with park brake 5 on 4.5 and 5 on 4.75 bolt circle. Includes park brake, but no park brake cables
Details:
- Caliper: 1 Iron
- Caliper Color: Silver
- Disc Brake Rotor (Rear) Outside Diameter: 11.65 Inch
- Axle: Rear
- Axle Flange: Dana 60, Mopar 8-3/4 Inch
- Brake Hose DOT Approved: Yes
- Disc Brake Caliper (Rear) Piston Quantity: 1
- Disc Brake Caliper (Rear) Type: Floating
- Disc Brake Pad FMSI Number: D0627
- Disc Brake Rotor (Rear) Construction: Vented
- Emission Code: 6
- Export Description: Brake Components
- Hose Material: Steel Braided
- Includes Park Brake: Yes
- Includes Park Brake Cables: No
- Lug Count: 5 Lug
- Min Wheel Diameter: 15.0 Inch
- Rotor Diameter: 11.65
- Solid Or Vented Type Rotor: Vented
- Surface Type: Slotted, Drilled and Zinc Plated
- Template: V107I
- Wheel Lug/Bolt Pattern: 5x4.50, 5.4.75
