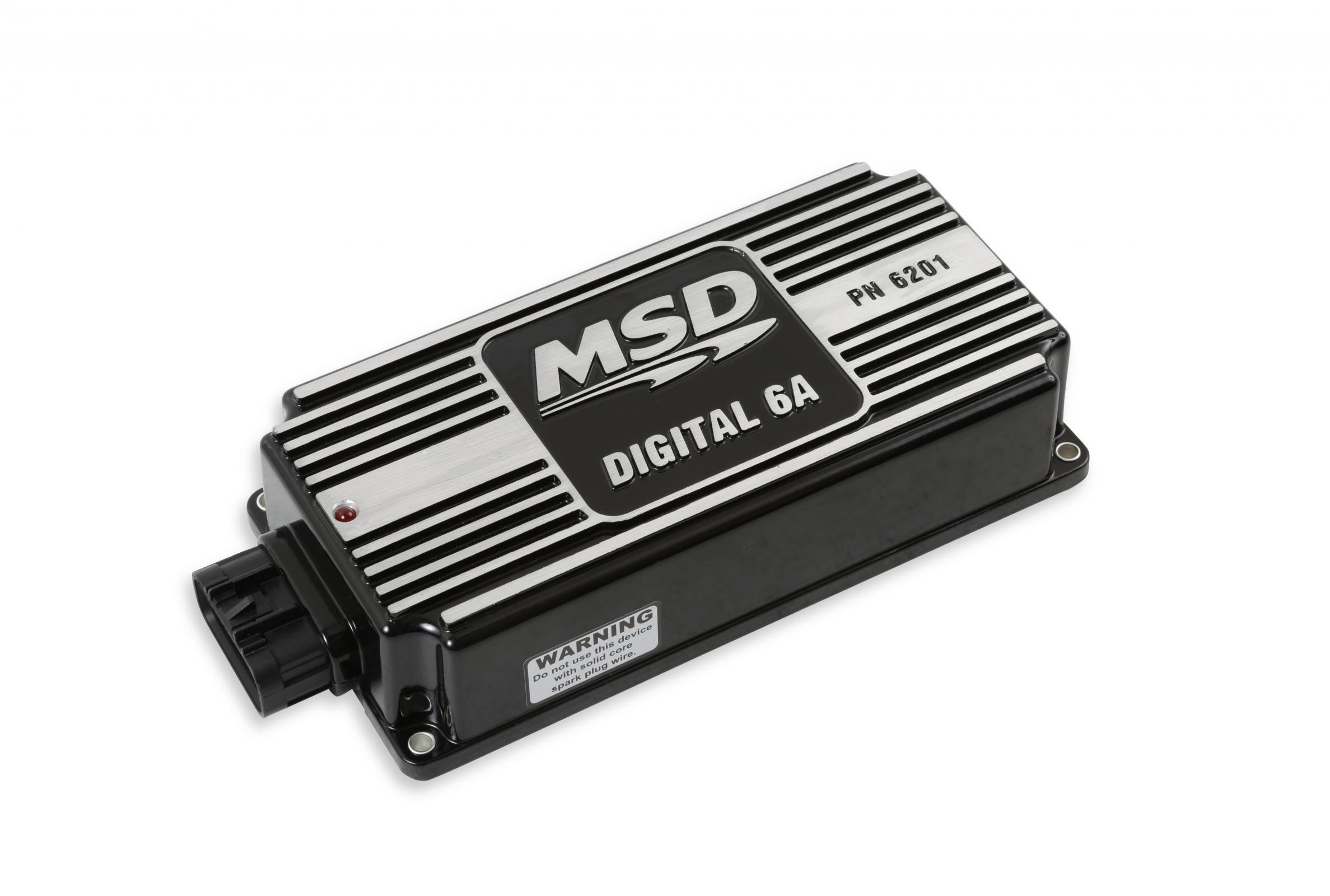

The Digital 6A is a microprocessor controlled, capacitive discharge ignition that multi sparks up to 3,000 RPM providing easy starts, a clean, smooth idle and quick throttle response by optimizing your engines efficiency. Above 3,000 RPM, a single spark stays lit for up to 200 of crankshaft rotation ensuring a complete burn of the air / fuel mixture in every cylinder.
- A sealed, locking connector keeps the minimal wiring of the 6A tidy for a clean installation in all applications. It can be run on 4, 6 and 8 cylinder engines with a 12 volt negative ground electrical system and can be triggered with breaker points, an electronic amplifier or magnetic pickups.
- If you're looking to improve the performance of your modified mill, we have the answer. Whether you've done a cam swap, or bolted on a carb, intake and headers.
. the 6A is a surefire way to harness all the ponies under your hood.
- Tach output wire
- Built-in LED for system checks
- .7 Amp per 1,000 RPM
- 15,000 RPM with 14.4 Volts
- 12-15 Volts, 7 Volt Start
- Smooth idle
- Compatible with 4, 6 or 8 cylinder engines
- Sealed, locking connector
- Full, capacitive discharge ignition power throughout the RPM range
- Easy starts
- Quick throttle response
Details:
- Connector Gender: Female
- Connector Quantity: 1.0
- Current Draw: 1000
- Emission Code: 1
- Height: 1.825
- Ignition Type: Performance
- Length: 8
- Maximum Rpm: 15,000
- Mounting Hardware Included: Yes
- Mounting Type: Surface Mount
- Primary Voltage: 520-540
- Spark Energy Mj Per Spark: 135-145
- Terminal Gender: Male
- Terminal Quantity: 12.0
- Warranty: Manufacturer's Limited 1 Year Warranty
