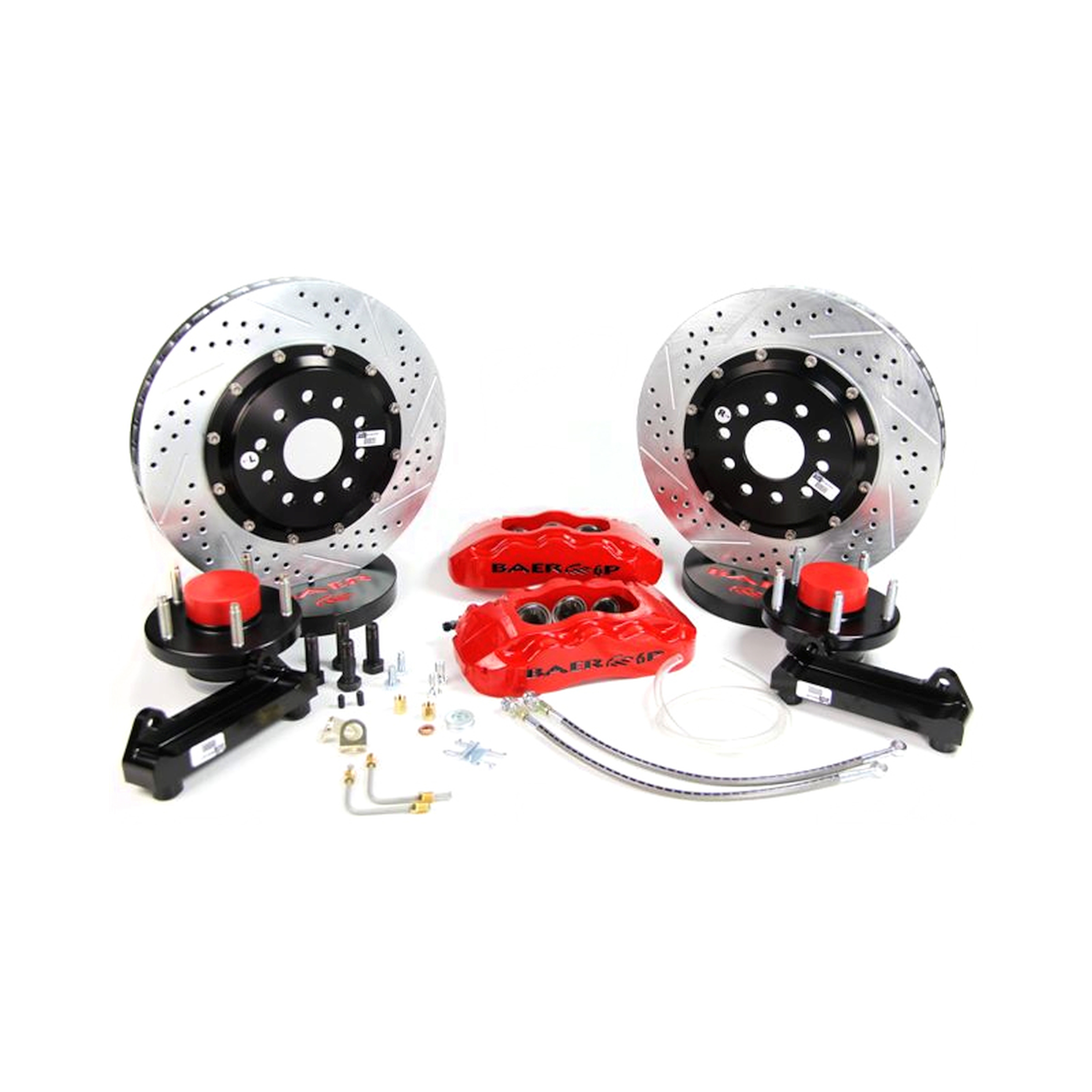

This system features the 6-piston, 6P caliper mounted to a 13 inch, 2 piece slot, drill, zinc plated rotor. T compliant dust and weather seals and uses the popular D0731 pad type.
Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. Rotors are pre-assembled with NAS high grade stainless hardware.
All mounting brackets, stainless braided hoses and hardware are also included. The 13 inch Pro Plus is designed to fit most 17 inch or larger wheels.
Increases track width .200 inch Per Side on OE drum spindles Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.Details:
- Fitment Notes: w/OE, Dse, Heidt's, Fatman, Ridetech and L&H Drop Spindles
- Caliper: 6P
- Caliper Color: Hugger Orange
- Disc Brake Rotor (Front) Outside Diameter: 13.0 Inch
- Applications: GM X-Body 64-74, GM F-Body 67-69, GM A-Body 64-72
- Axle: Front
- Brake Hose DOT Approved: Yes
- Disc Brake Caliper (Front) Piston Quantity: 6
- Disc Brake Caliper (Front) Type: Fixed
- Disc Brake Pad FMSI Number: D0731
- Disc Brake Rotor (Front) Construction: Vented
- Emission Code: 6
- Export Description: Brake Components
- Grade Type: Performance
- Hose Material: Steel Braided
- Lug Count: 5 Lug
- Min Wheel Diameter: 17.0 Inch
- Rotor Thickness: 1.1
- Rotor Type: 2-Piece
- Spindle Type: GM Afx (also fits Dse, Heidt's, Fatman, Ridetech and L&H 2 Inch drop spindles)
- Spindles Included: No
- Surface Type: Slotted, Drilled and Zinc Plated
- Template: Q082H
- Wheel Lug/Bolt Pattern: 5x4.75
- Wheel Stud Size: 1/2-20 x 2.25 Inch
