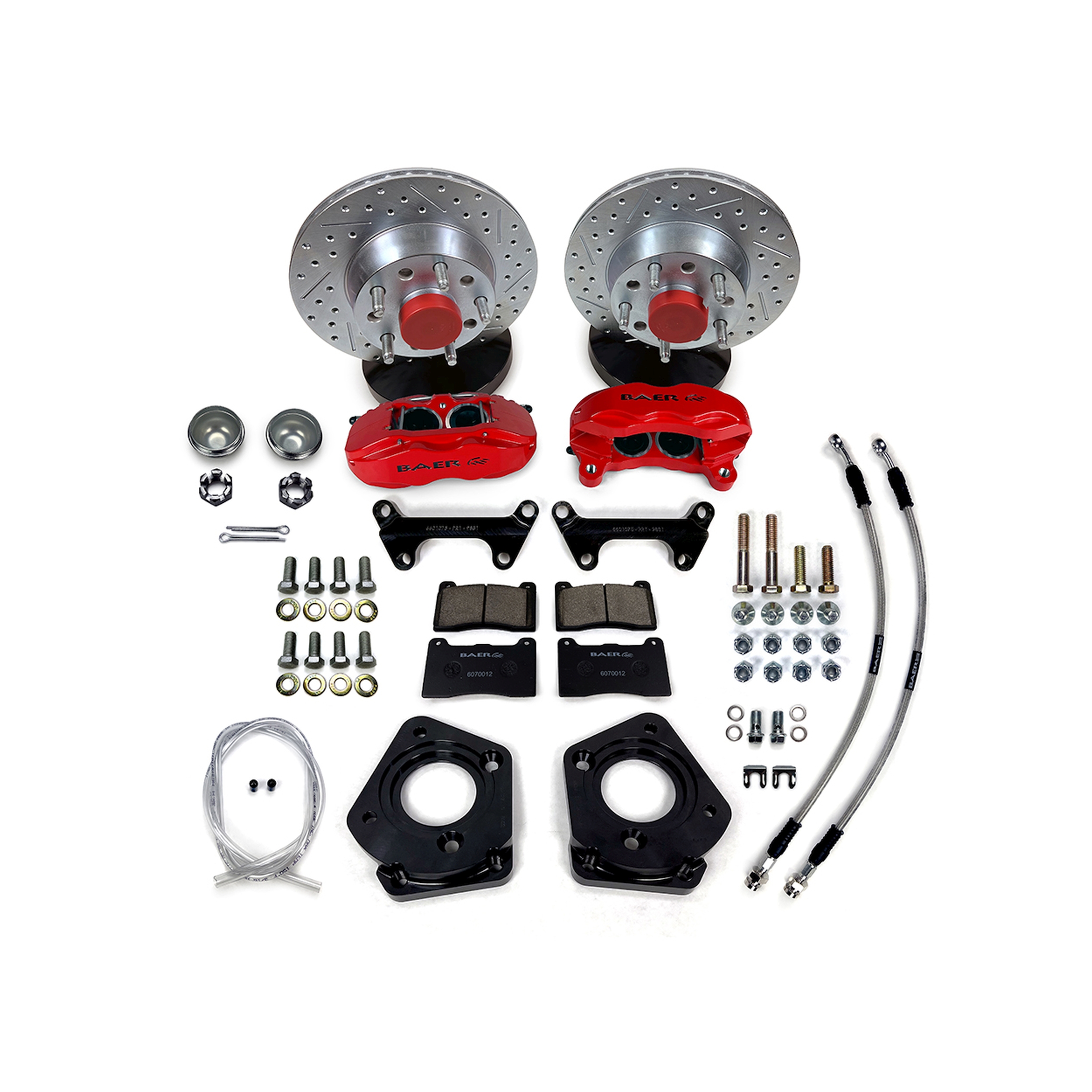

This system features the 4-piston, S4TL caliper mounted to a 11 inch, 1-Piece slot, drill, zinc plated integral hub rotor. T compliant dust and weather seals with a top load design for quick and simple pad changes.
Rotors come with bearing races installed and premium bearings packed with Redline synthetic grease and new dust caps. All mounting brackets, stainless braided hoses and hardware are also included.
The 11 inch SS4 is designed just like Baer's larger systems, but in a smaller package for 15 inch wheels.
Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.Details:
- Fitment Notes: w/OE Drum Brake Spindles
- Caliper: S4TL
- Caliper Color: Red
- Disc Brake Rotor (Front) Outside Diameter: 11.29 Inch
- Applications: Mercury Comet 71-74 (w/Drum), Ford Mustang 70-73 (w/Drum), Ford Fairlane 70 (w/Drum), Ford Falcon 70 (w/Drum), Ford Torino 70-71 (w/Drum), Mercury Cougar 70-73 (w/Drum), Ford Maverick 70-74 (w/Drum), Mercury Cyclone 70 (w/Drum), Mercury Montego 70-71 (w/Drum)
- Axle: Front
- Brake Hose DOT Approved: Yes
- Disc Brake Caliper (Front) Piston Quantity: 4
- Disc Brake Caliper (Front) Type: Fixed
- Disc Brake Pad FMSI Number: 6070012
- Disc Brake Rotor (Front) Construction: Vented
- Emission Code: 6
- Export Description: Brake Components
- Grade Type: Performance
- Hose Material: Steel Braided
- Lug Count: 5 Lug
- Min Wheel Diameter: 15.0 Inch
- Rotor Thickness: 0.94
- Rotor Type: 1-Piece Integral Hub
- Solid Or Vented Type Rotor: Vented
- Surface Type: Slotted, Drilled and Zinc Plated
- Template: ST168B
- Wheel Lug/Bolt Pattern: 5x4.50
- Wheel Stud Size: 1/2-20 x 2.25 Inch
