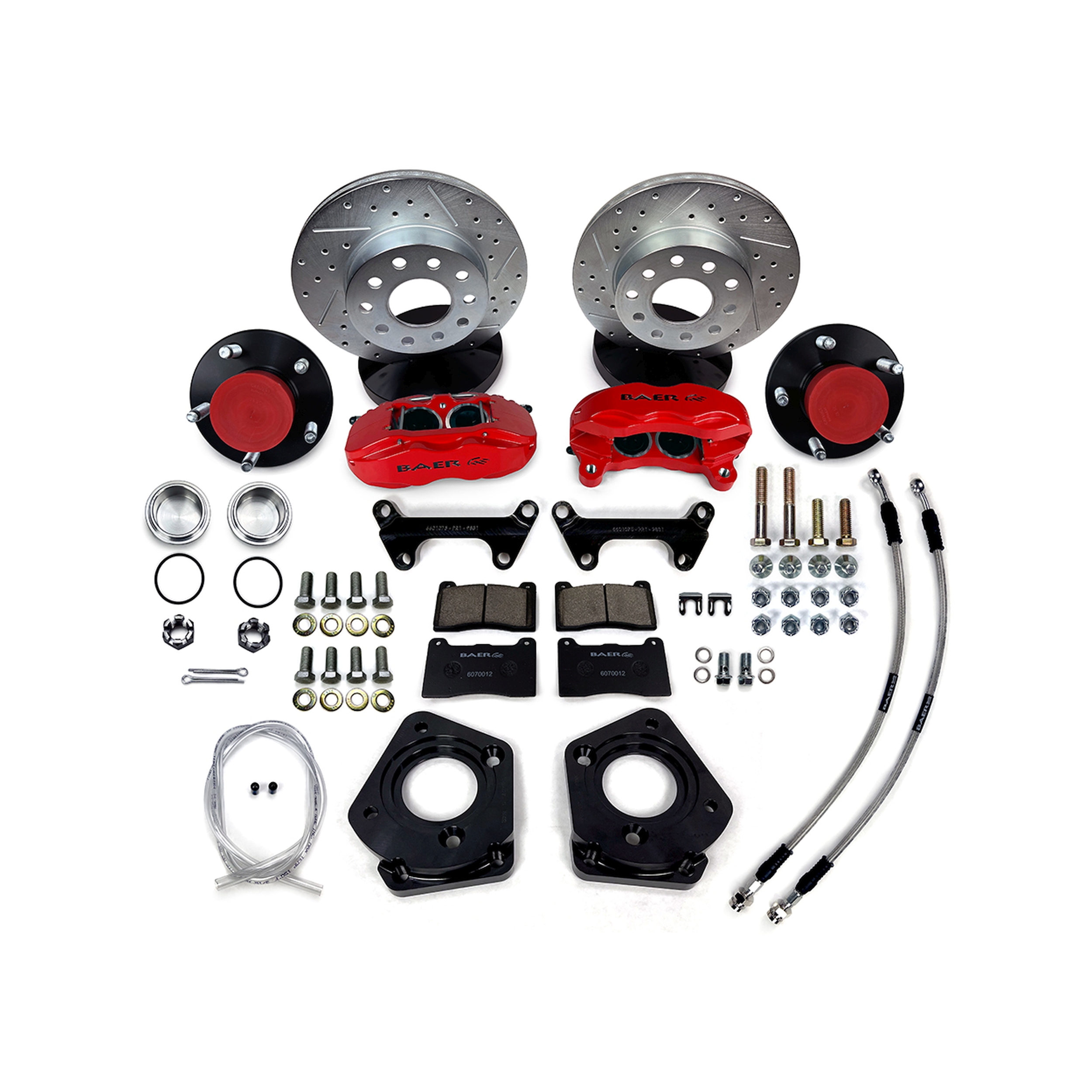

This system features the 4-piston, S4TL caliper mounted to a 11 inch, 1-Piece slot, drill, zinc plated rotor. T compliant dust and weather seals with a top load design for quick and simple pad changes.
Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet aluminum dust caps. All mounting brackets, stainless braided hoses and hardware are also included.
The 11 inch SS4 is designed just like Baer's larger systems, but in a smaller package for 15 inch wheels.
Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.Details:
- Fitment Notes: w/OE Drum Brake Spindles, w/OE Disc Brake Spindles
- Caliper: S4TL
- Caliper Color: Monster Green
- Disc Brake Rotor (Front) Outside Diameter: 11.29 Inch
- Applications: Mercury Cyclone 69 (w/Drum), Ford Mustang 67 (w/Disc), Ford Torino 69 (w/Drum), Mercury Cougar 67 (w/Disc), Mercury Comet 66-69 (w/Drum), Ford Falcon 63-69 (w/Drum), Ford Mustang 65-69 (w/Drum), Ford Fairlane 62-69 (w/Drum), Mercury Cougar 67-69 (w/Drum)
- Axle: Front
- Brake Hose DOT Approved: Yes
- Disc Brake Caliper (Front) Piston Quantity: 4
- Disc Brake Caliper (Front) Type: Fixed
- Disc Brake Pad FMSI Number: 6070012
- Disc Brake Rotor (Front) Construction: Vented
- Emission Code: 6
- Export Description: Brake Components
- Grade Type: Performance
- Hose Material: Steel Braided
- Lug Count: 5 Lug
- Min Wheel Diameter: 15.0 Inch
- Rotor Thickness: 1.02
- Rotor Type: 1-Piece
- Solid Or Vented Type Rotor: Vented
- Surface Type: Slotted, Drilled and Zinc Plated
- Template: ST125A
- Wheel Lug/Bolt Pattern: 5x4.50
- Wheel Stud Size: 1/2-20 x 2.25 Inch
