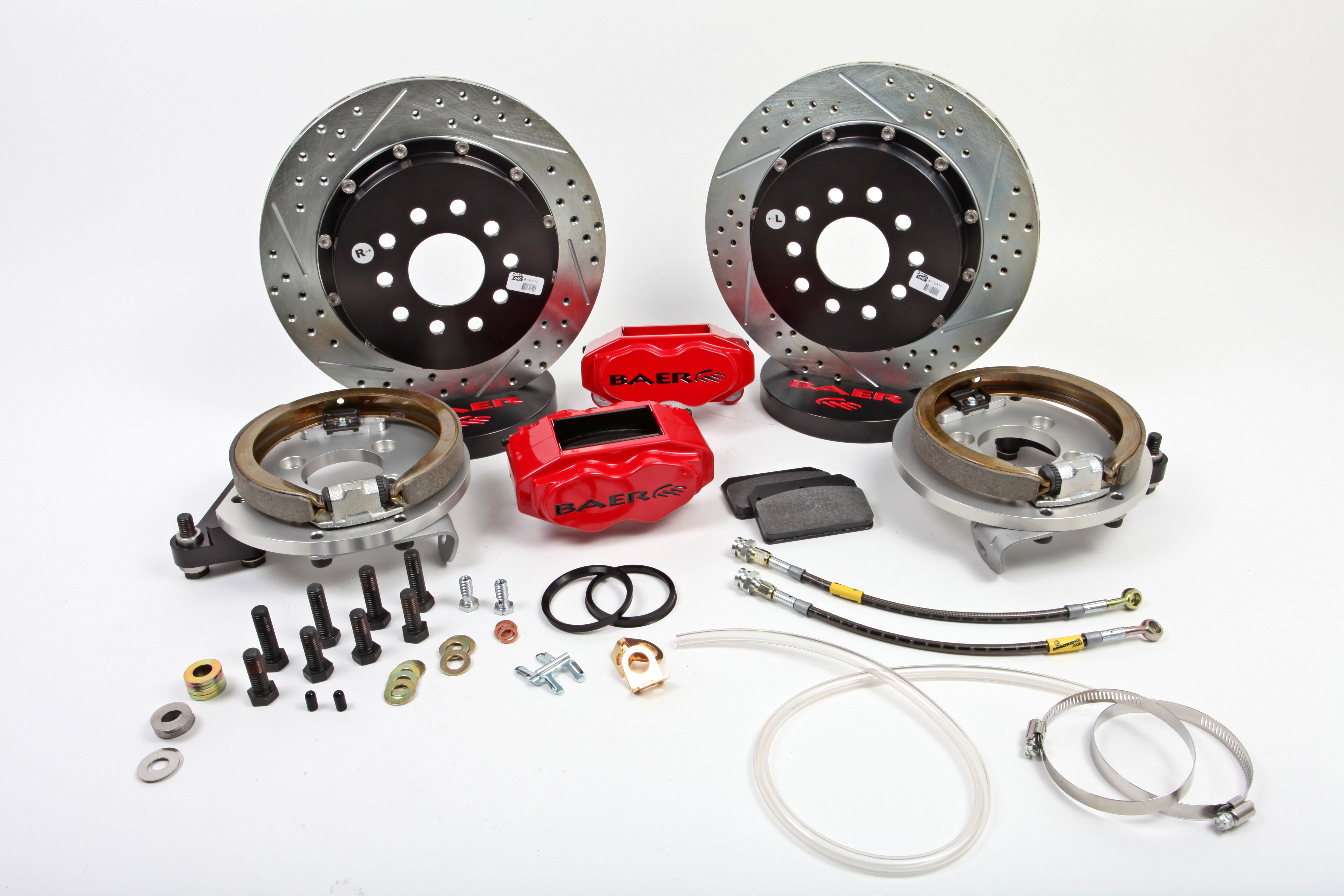

This system features the 4-piston, S4 caliper mounted to a 13 inch, 2 piece slot, drill, zinc-plated rotor. T compliant dust and weather seals and uses the popular DR1-C pad type.
Rotors are pre-assembled with NAS high grade stainless hardware. Baer's unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly.
Stainless braided hoses and hardware are also included. The 13 inch SS4 Plus fits most 17 inch or larger wheels.
Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.Details:
- Caliper: S4
- Caliper Color: Hugger Orange
- Disc Brake Rotor (Rear) Outside Diameter: 13.0 Inch
- Axle: Rear
- Axle Flange: Ford 9 Inch Torino/Late Big Bearing
- Brake Hose DOT Approved: Yes
- Disc Brake Caliper (Rear) Piston Quantity: 4
- Disc Brake Caliper (Rear) Type: Fixed
- Disc Brake Pad FMSI Number: DR1-C
- Disc Brake Rotor (Rear) Construction: Vented
- Emission Code: 6
- Export Description: Brake Components
- Grade Type: Performance
- Hose Material: Steel Braided
- Includes Park Brake: Yes
- Includes Park Brake Cables: No
- Lug Count: 5 Lug
- Min Wheel Diameter: 17.0 Inch
- Rotor Thickness: 0.81
- Rotor Type: 2-Piece
- Surface Type: Slotted, Drilled and Zinc Plated
- Template: S135H
- Wheel Lug/Bolt Pattern: 5x4.50/5x4.75
