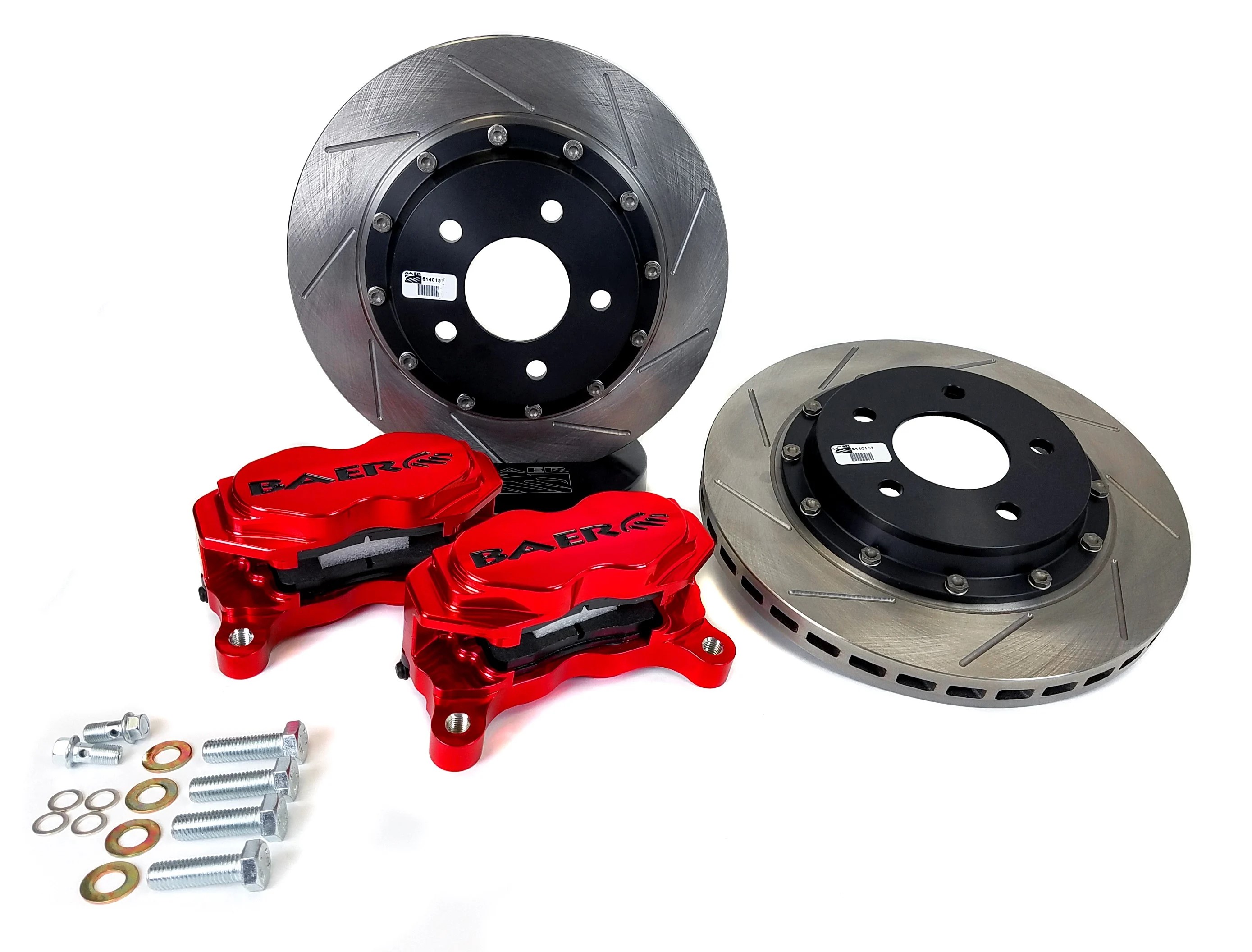

100 inch 2 piece, slotted rotor and uses the popular DR1/HB100 pad type. The slot only rotors are mounted to 6061 billet aluminum hats using NAS high grade stainless hardware and come pre-assembled.
All additional mounting hardware is also included. 0 Deep Stage system was designed to allow consumers to push the limits at the strip, yet still have a system that can be driven on the street.
0 Deep Stage system fits many 15in and larger wheels.
Note: This system comes equipped with a high friction pad that is optimized for drag race applications.
These pads often produce more dust and noise. Drag Race systems come standard in Clear and Fire Red caliper colors.
Details:- Caliper: S4
- Caliper Color: Fire Red
- Disc Brake Rotor (Front) Outside Diameter: 12.0 Inch
- Applications: Ford Mustang 15-23
- Axle: Front
- Disc Brake Caliper (Front) Piston Quantity: 4
- Disc Brake Caliper (Front) Type: Fixed
- Disc Brake Pad FMSI Number: DR1
- Disc Brake Rotor (Front) Construction: Vented
- Emission Code: 6
- Export Description: Brake Components
- Grade Type: Performance
- Hose Material: Hoses Not Included
- Lug Count: 5 Lug
- Min Wheel Diameter: 15.0 Inch
- Rotor Thickness: 1.1
- Surface Type: Slotted
- Template: S096E
- Wheel Lug/Bolt Pattern: 5x4.50
