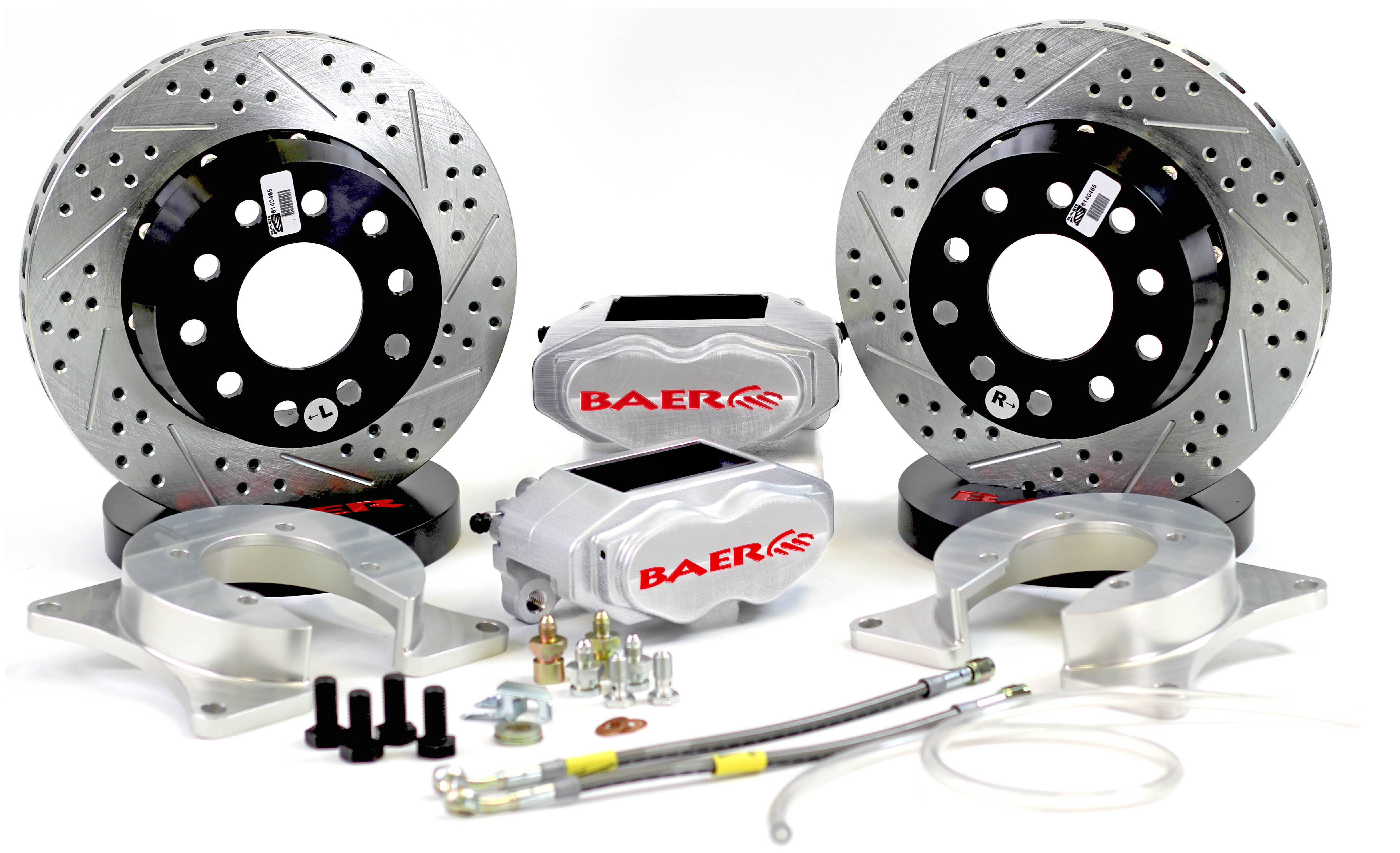

This system features the 4-piston, S4 caliper mounted to a 11 inch 2 piece slot, drill, zinc plated rotor. T compliant dust and weather seals and uses the popular DR1 or HB100 pad type.
75 inch pistons, the S4 Deep Stage caliper will offer additional clamping force over the standard S4 caliper. While this usually desired in a drag race application, it may not be ideal for street use.
Rotors are pre-assembled with NAS high grade stainless hardware. Mounting brackets and hardware are also included.
The SS4 Plus Deep Stage system is the first drag race system designed specifically for heavy, fast cars that might also see street use. The 11 inch SS4 Plus Deep Stage system fits most 15 inch and larger wheels.
Note: This system was designed for racing only.
If used on the street (due to brake bias change) be sure to spend some time to make sure adjusted correctly.
Details:- Fitment Notes: Fits standard and Green Bearing conversions
- Caliper: S4
- Caliper Color: Clear
- Disc Brake Rotor (Rear) Outside Diameter: 11.0 Inch
- Axle: Rear
- Axle Flange: Dana 60, Mopar 8-3/4 Inch
- Disc Brake Caliper (Rear) Piston Quantity: 4
- Disc Brake Caliper (Rear) Type: Fixed
- Disc Brake Pad FMSI Number: DR1
- Disc Brake Rotor (Rear) Construction: Vented
- Emission Code: 6
- Export Description: Brake Components
- Friction Material Composition: Semi-metallic
- Grade Type: Performance
- Hose Material: Hoses Not Included
- Lug Count: 5 Lug
- Min Wheel Diameter: 15.0 Inch
- Rotor Thickness: 1.02
- Rotor Type: 2-Piece
- Solid Or Vented Type Rotor: Vented
- Surface Type: Slotted, Drilled and Zinc Plated
- Template: S125A
- Wheel Lug/Bolt Pattern: 5x4.50/5x4.75
