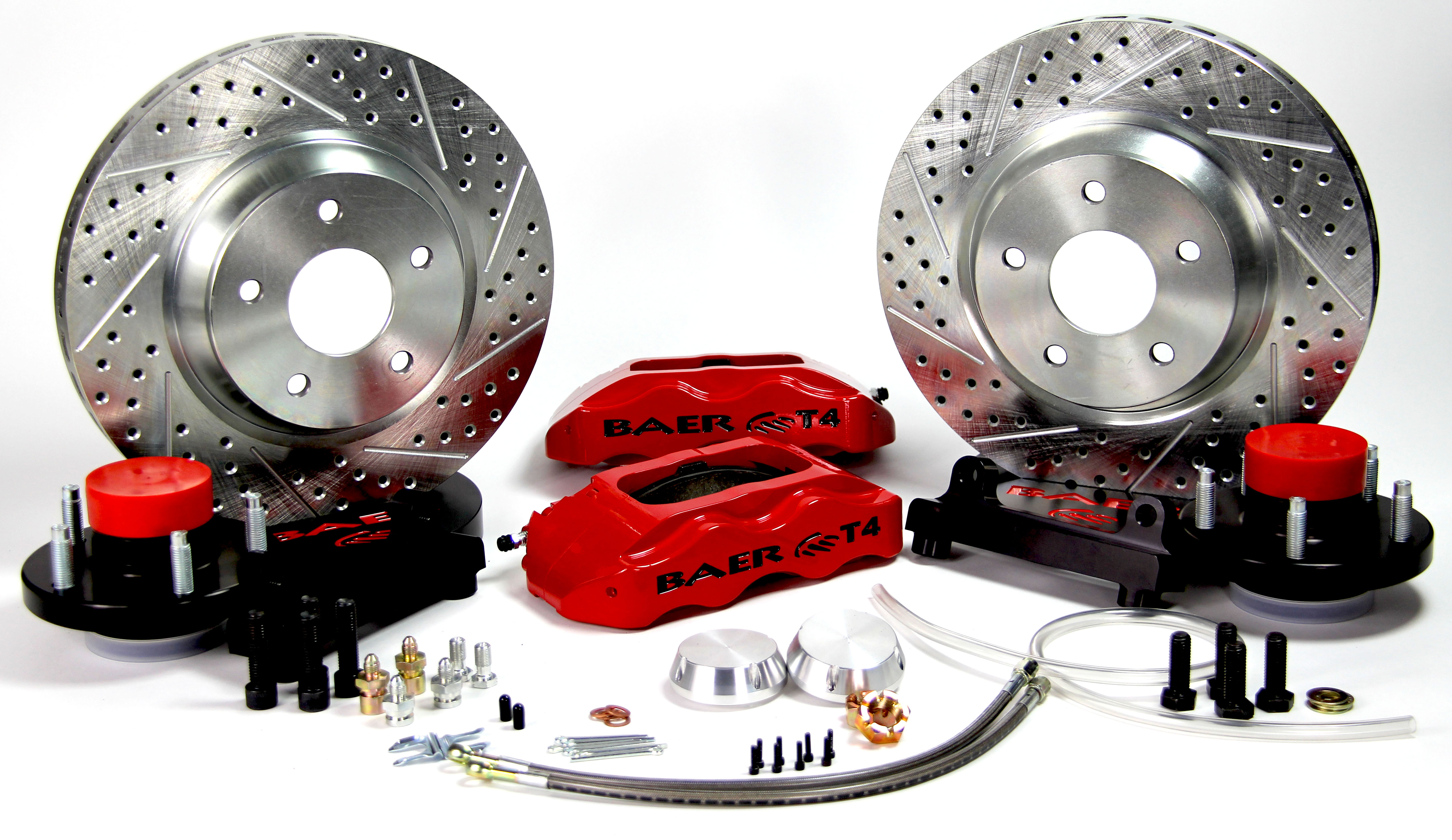

This system features the 4-piston, T4 caliper mounted to a 13 inch, 1 piece slot, drill, zinc plated rotor. T compliant dust and weather seals and uses the popular D0749 pad type.
Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. All mounting brackets and hardware are also included.
The 13 inch Track4 is designed to fit most 17 inch or larger wheels.
Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.Details:
- Caliper: T4
- Caliper Color: Grabber Blue
- Disc Brake Rotor (Front) Outside Diameter: 13.0 Inch
- Axle: Front
- Disc Brake Caliper (Front) Piston Quantity: 4
- Disc Brake Caliper (Front) Type: Fixed
- Disc Brake Pad FMSI Number: D0749
- Disc Brake Rotor (Front) Construction: Vented
- Emission Code: 6
- Export Description: Brake Components
- Grade Type: Performance
- Hose Material: Hoses Not Included
- Lug Count: 5 Lug
- Min Wheel Diameter: 17.0 Inch
- Rotor Thickness: 1.1
- Rotor Type: 1-Piece
- Spindle Type: Wilwood Mustang Ii Pro
- Spindles Included: No
- Surface Type: Slotted, Drilled and Zinc Plated
- Template: Q082H
- Wheel Lug/Bolt Pattern: 5x4.50/5x4.75
- Wheel Stud Size: 1/2-20 x 2.25 Inch
